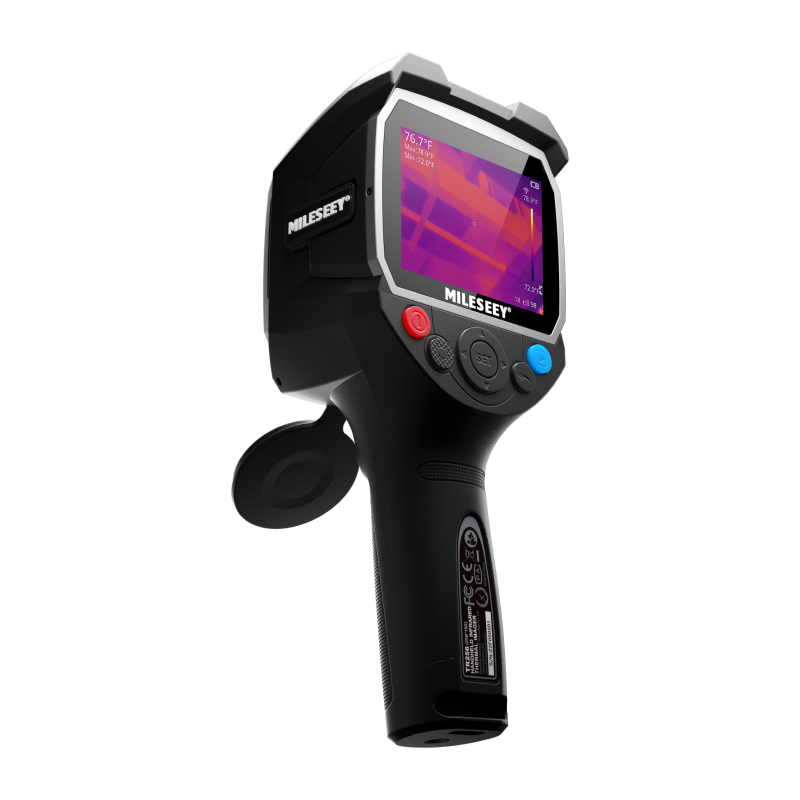

TR384C Thermal Imaging Camera with Laser Measure & GPS TR384C Thermal Imaging Camera with Laser Measure & GPS TR384C Thermal Imaging Camera with Laser Measure & GPS TR384C Thermal Imaging Camera with Laser Measure & GPS TR384C Thermal Imaging Camera with Laser Measure & GPS TR384C Thermal Imaging Camera with Laser Measure & GPS TR384C Thermal Imaging Camera with Laser Measure & GPS TR384C Thermal Imaging Camera with Laser Measure & GPS TR384C Thermal Imaging Camera with Laser Measure & GPS TR384C Thermal Imaging Camera with Laser Measure & GPS

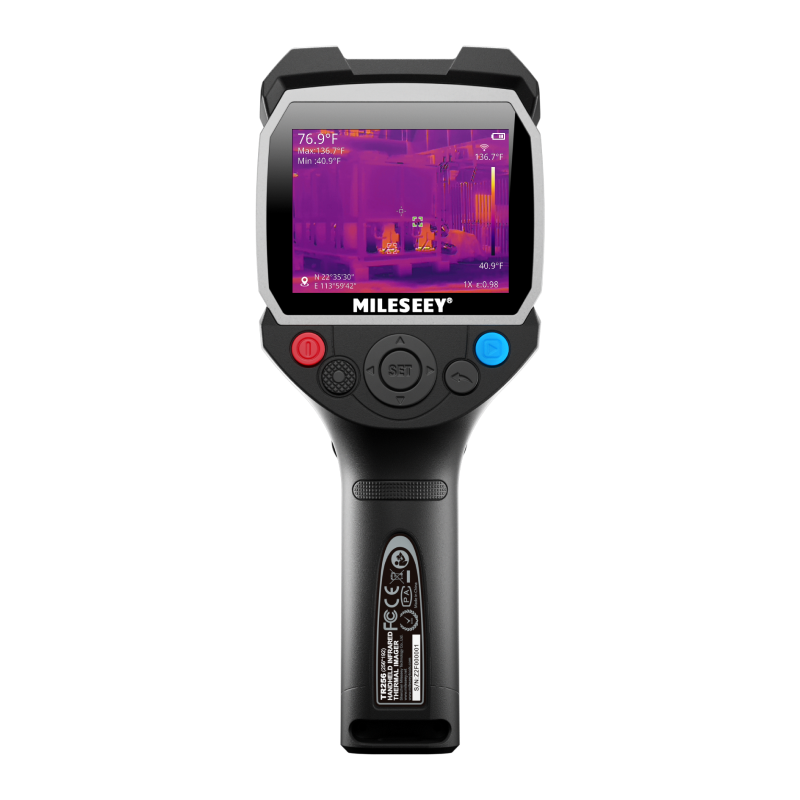

TR384C: High-Precision Thermal Imaging with Laser Measurement & GPS
Empowering Professionals for Accurate Inspections and Diagnostics.

TR384C: High-Precision Thermal Imaging with Laser Measurement & GPS

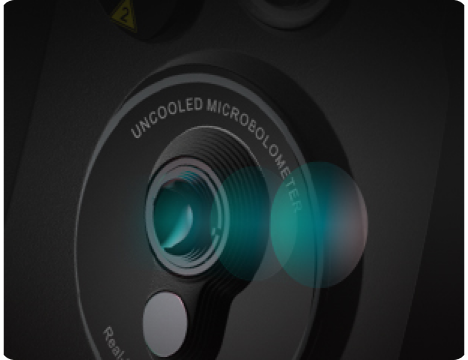

Advanced 9mm F1.0 Lens

Advanced Laser Distance Measure

Convenient GPS Function

Easy Cross-Surface Alignment

Powerful Detection

Superb Viewing Experience

Extended Battery Life

Seamless App Connectivity

Take Thermal Imaging to the Next Level

Upgraded camera lens with advanced image enhancement algorithm ensures pristine image quality with vivid details, allowing users to find the anomaly with just a glance.

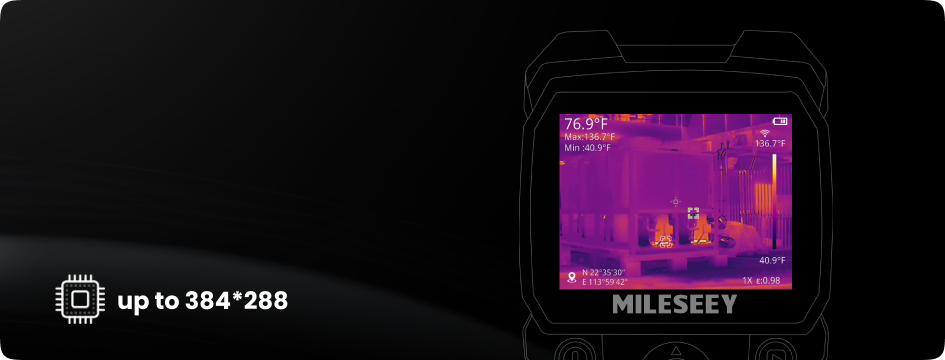

384*288
up to
25Hz
Frame Rate
≤40mk
NETD

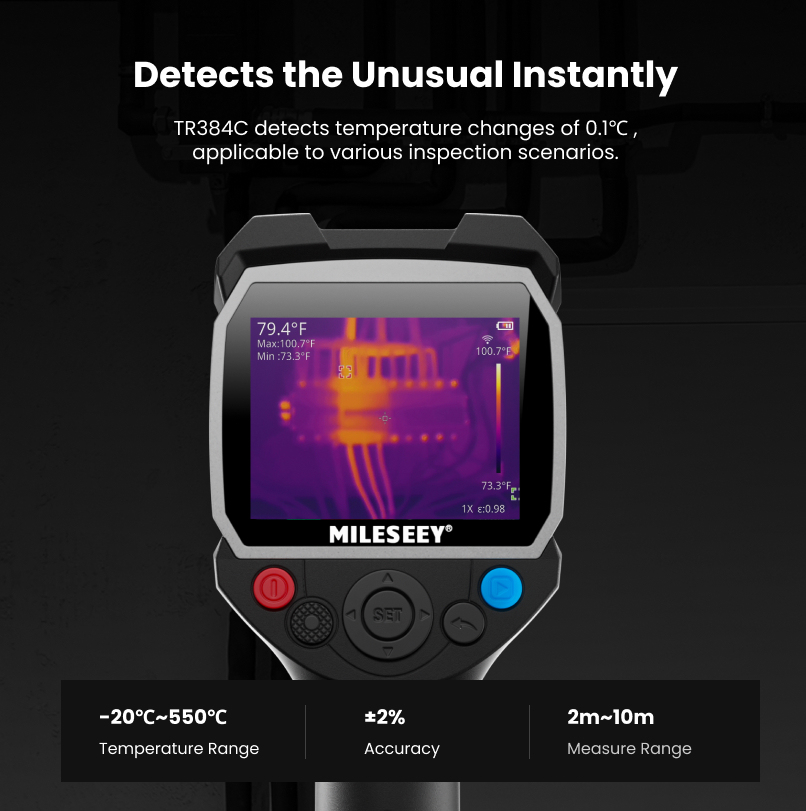

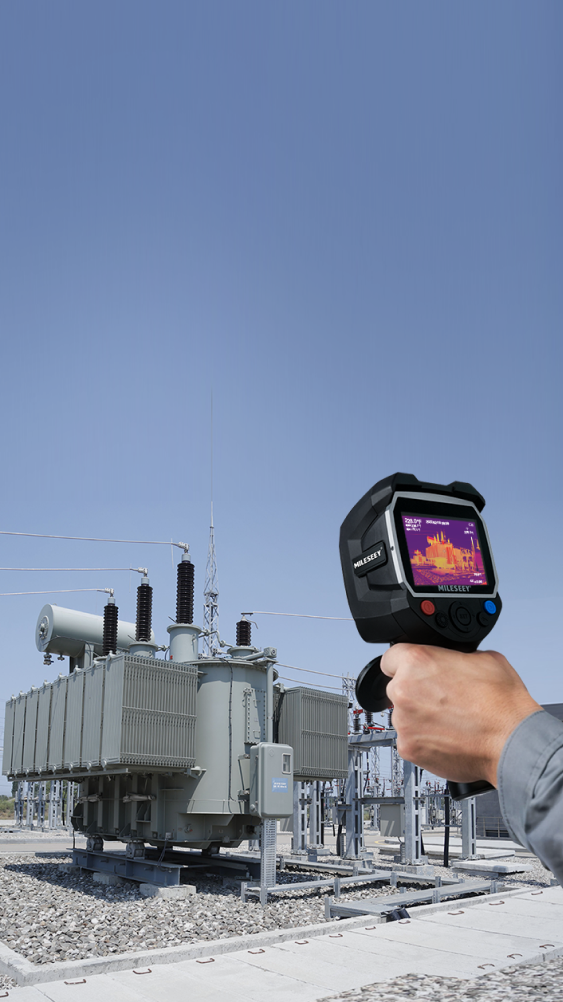

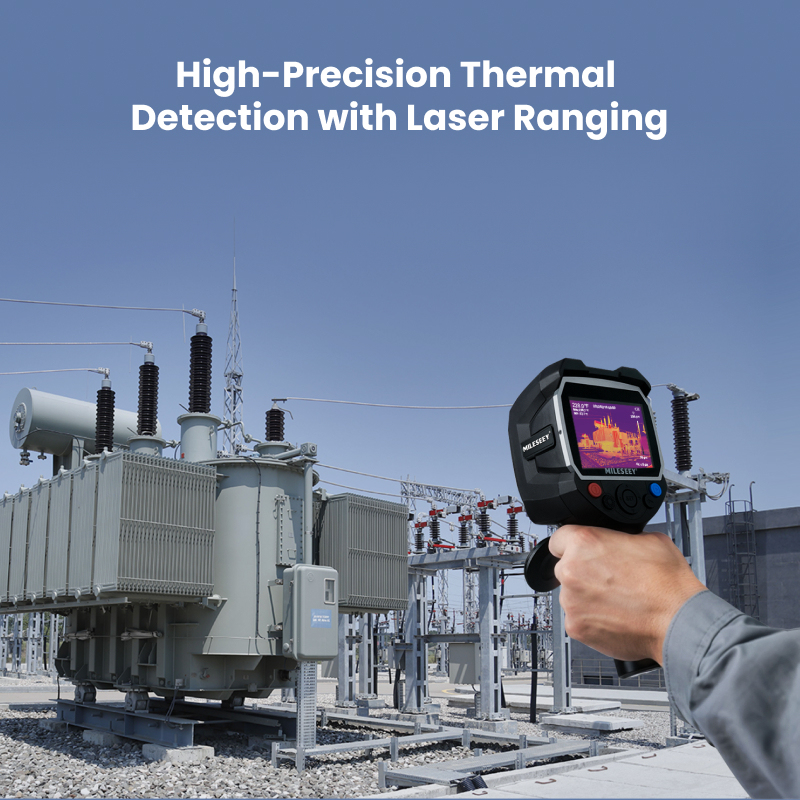

Detects the Unusual Instantly

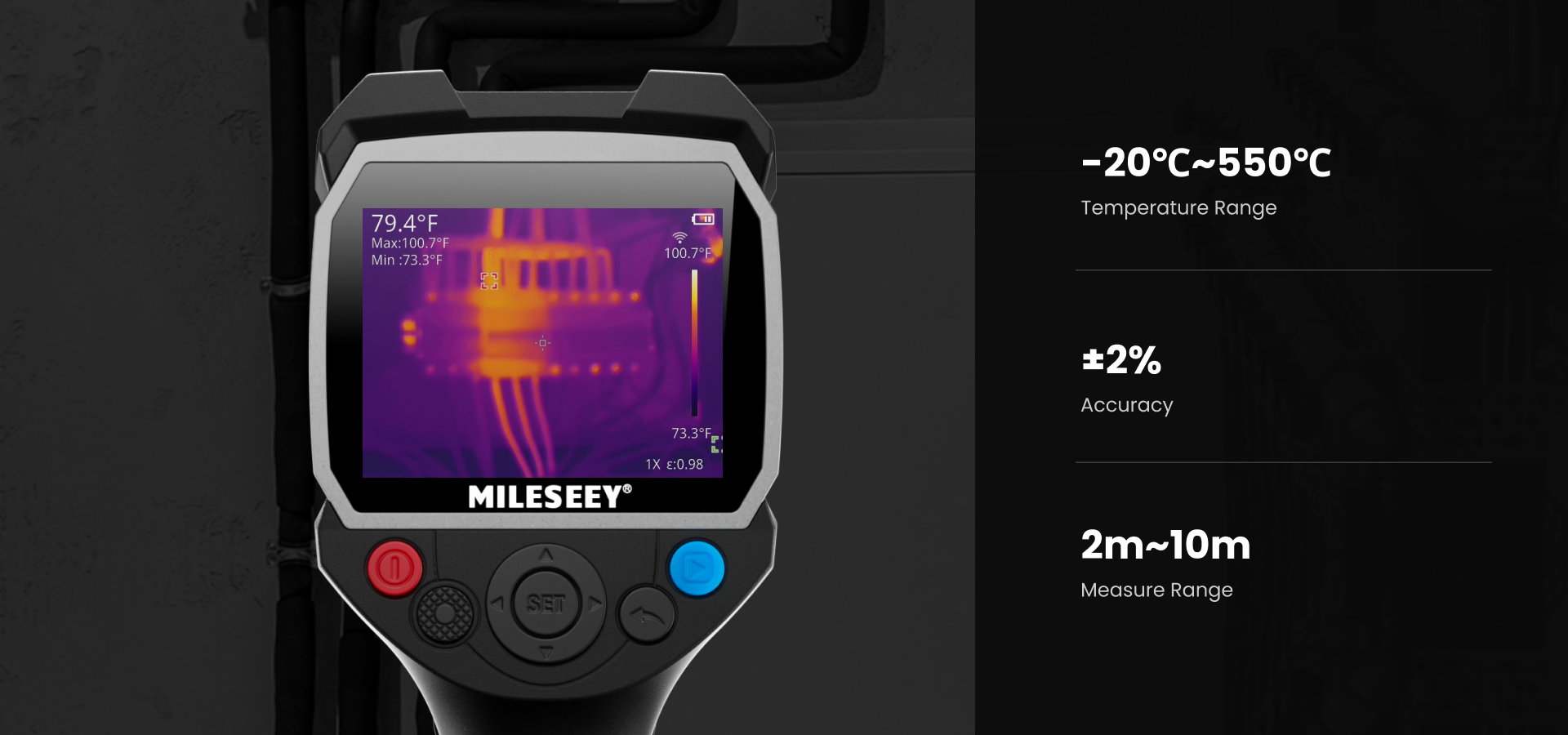

TR384C detects temperature changes of 0.1℃ with accuracy up to ±2% and wide temperature range between -20℃ to 550℃, applicable to various inspection scenarios.

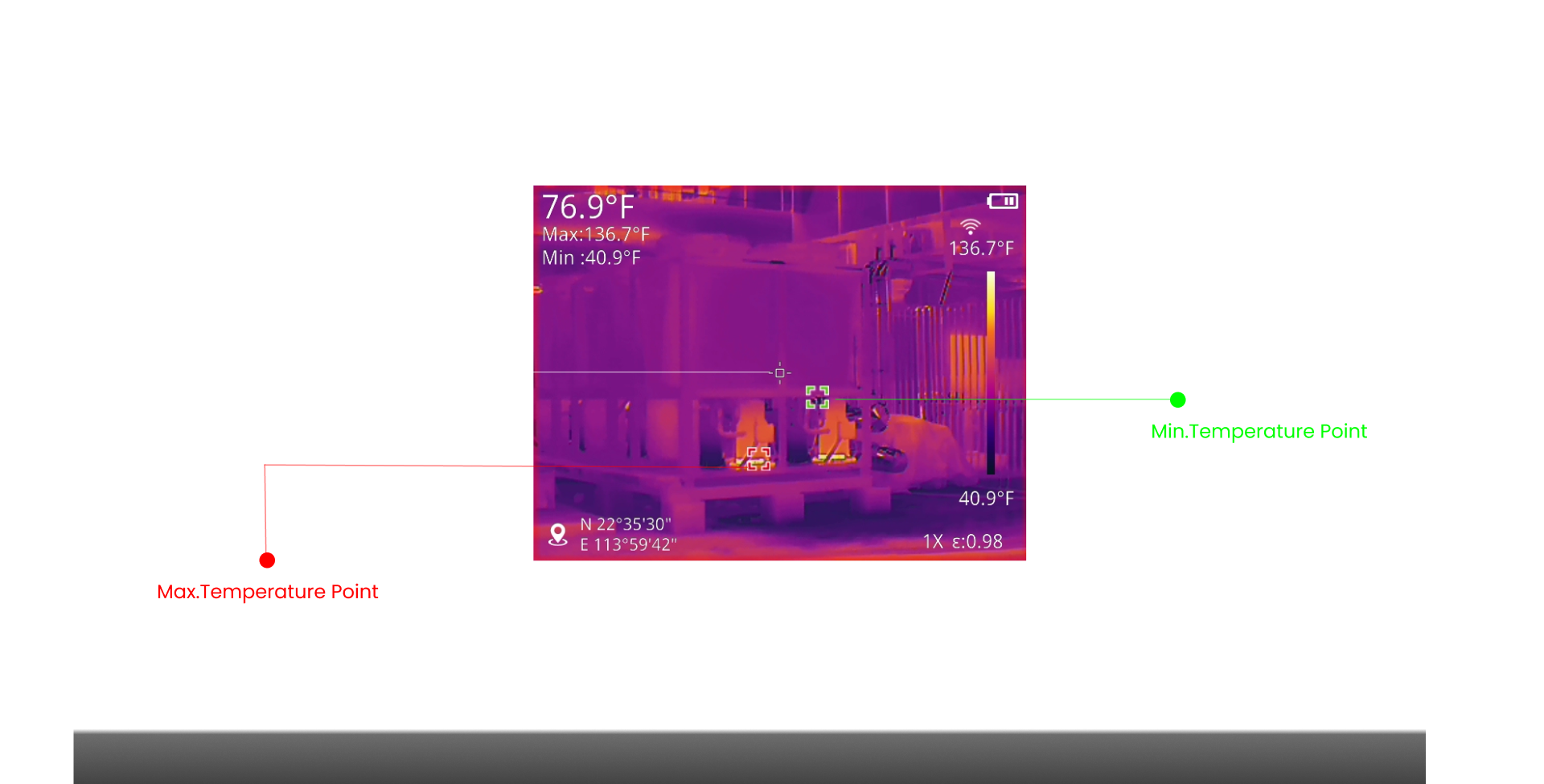

Identify Anomalies in a Second

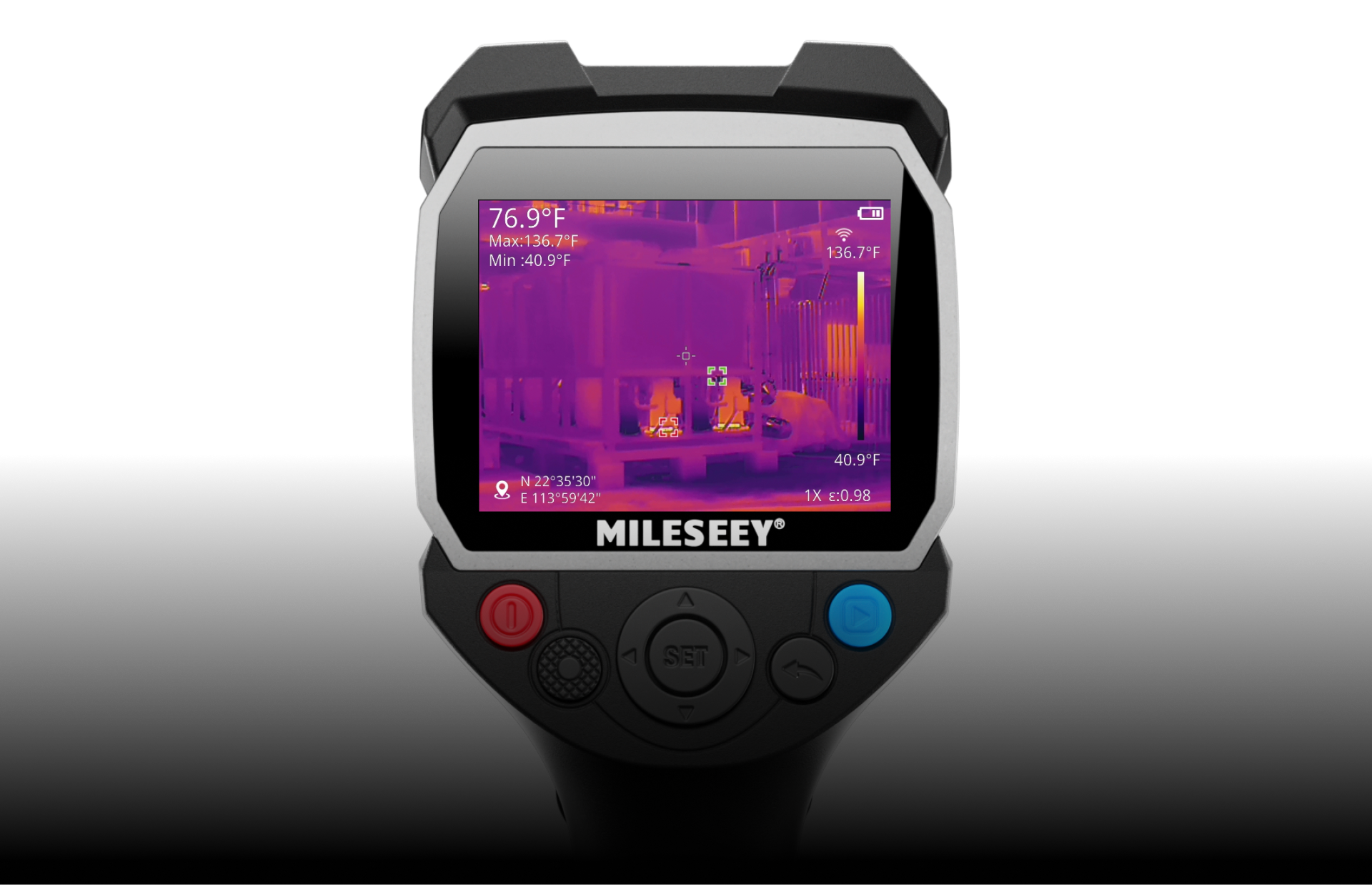

Hot & Cold Spot Auto Track with high/low temperature alarm helps users to quickly pinpoint where the problem is in the scanning area and fix it in time.

Enhanced Imaging Capabilities for Precision Diagnostics

5 Image Modes for Every Inspection Need
Wide Field of View and Smooth Frame Rate
7 Color Palettes for Visual Flexibility

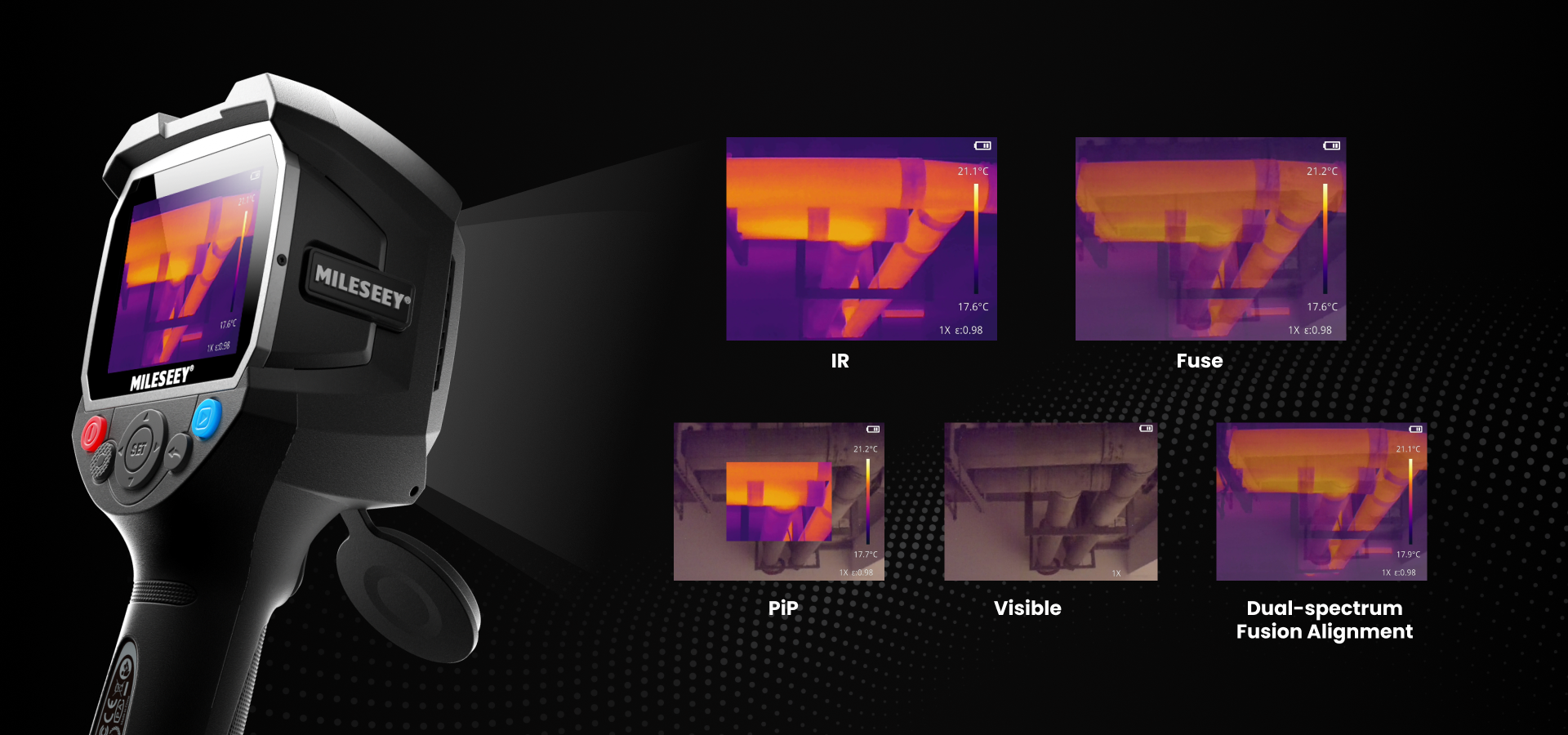

5 Image Modes for Every Inspection Need

Switch between IR, Fuse, PIP, Visible or Dual-spectrum Fusion Alignment to adapt to any inspection environment and enhance diagnostic precision.

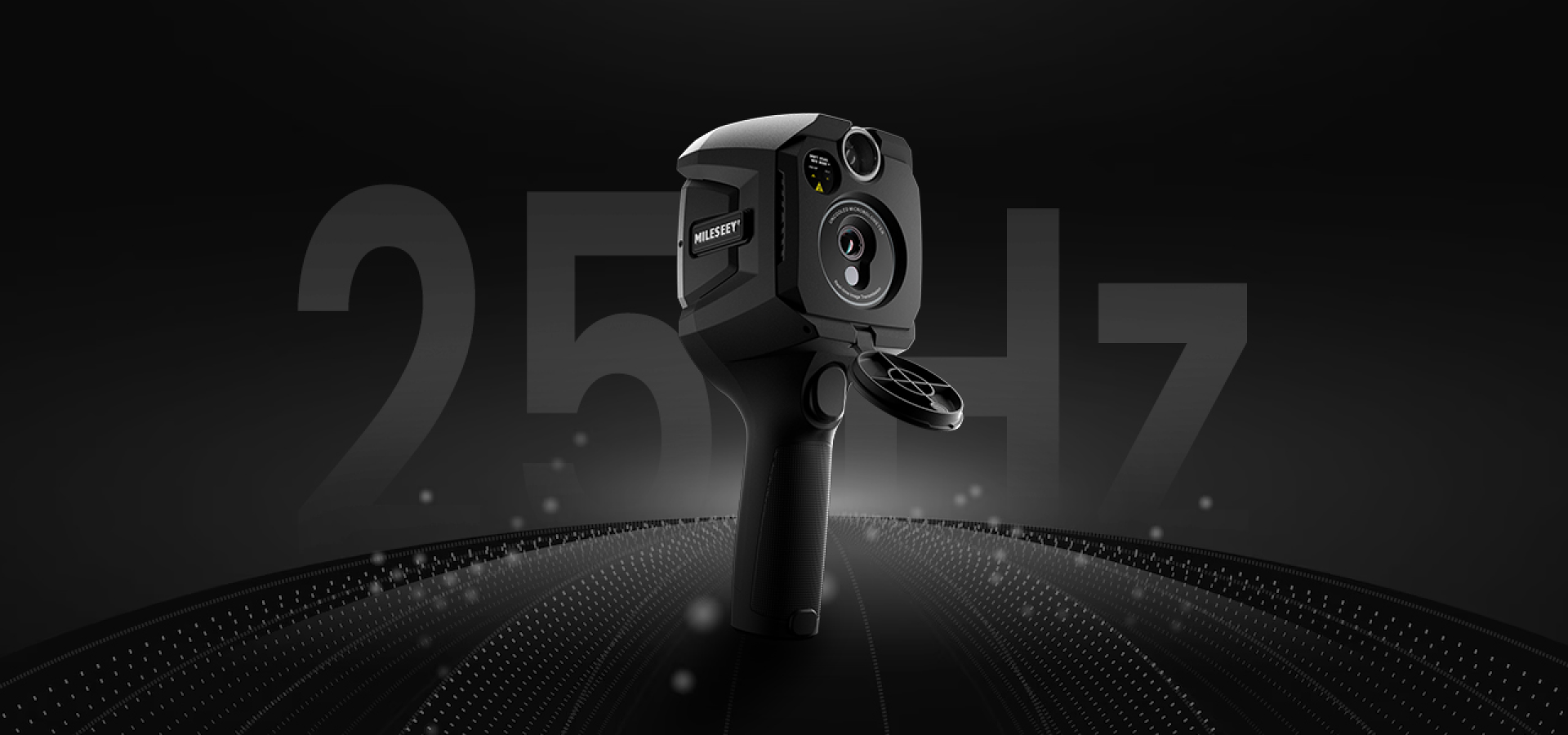

Wide Field of View and Smooth Frame Rate

With a 25Hz refresh rate, TR384C captures smooth, real-time thermal data, ensuring no detail is missed.

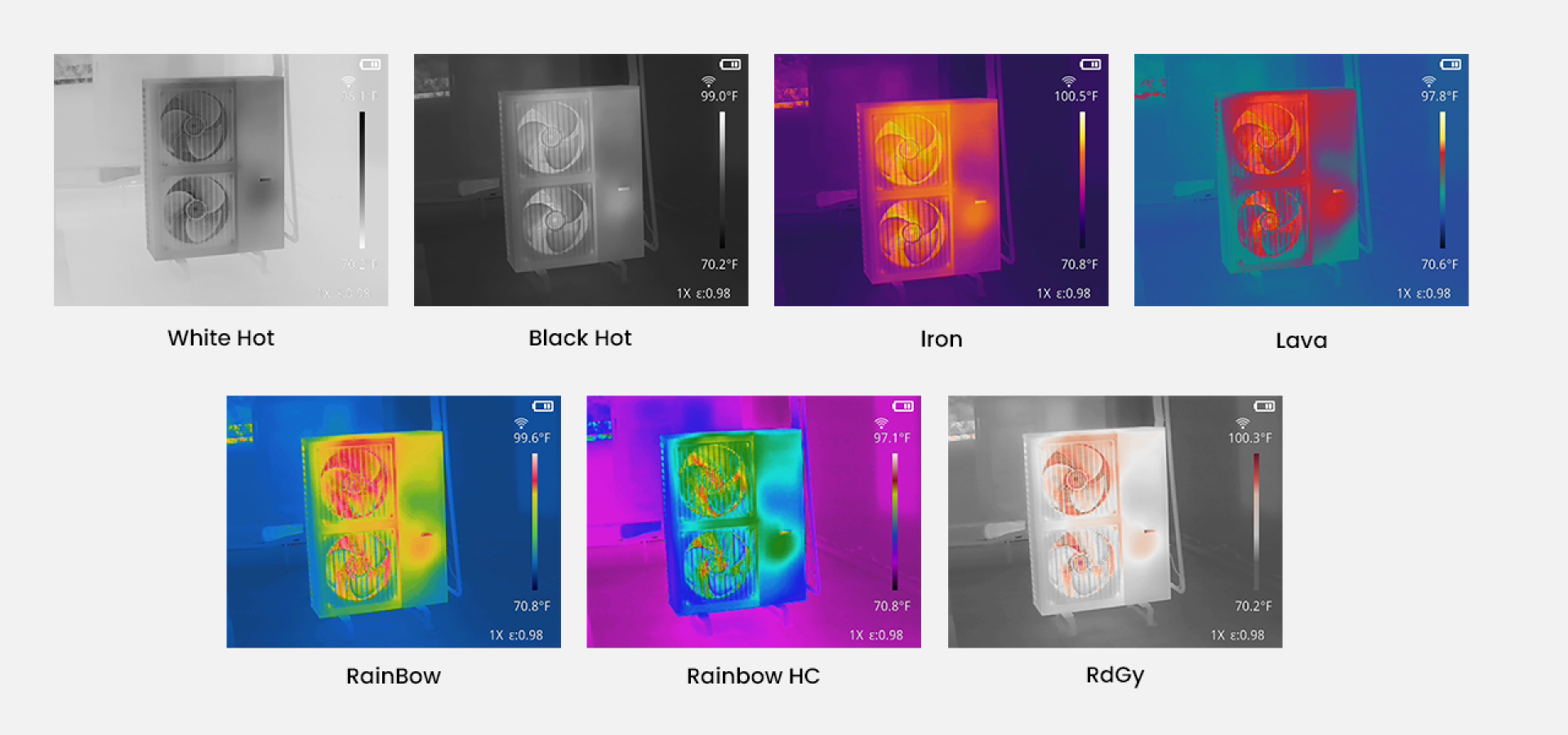

7 Color Palettes for Visual Flexibility

Select from 7 color palettes to suit different environments and inspection tasks, making temperature anomalies easier to identify.

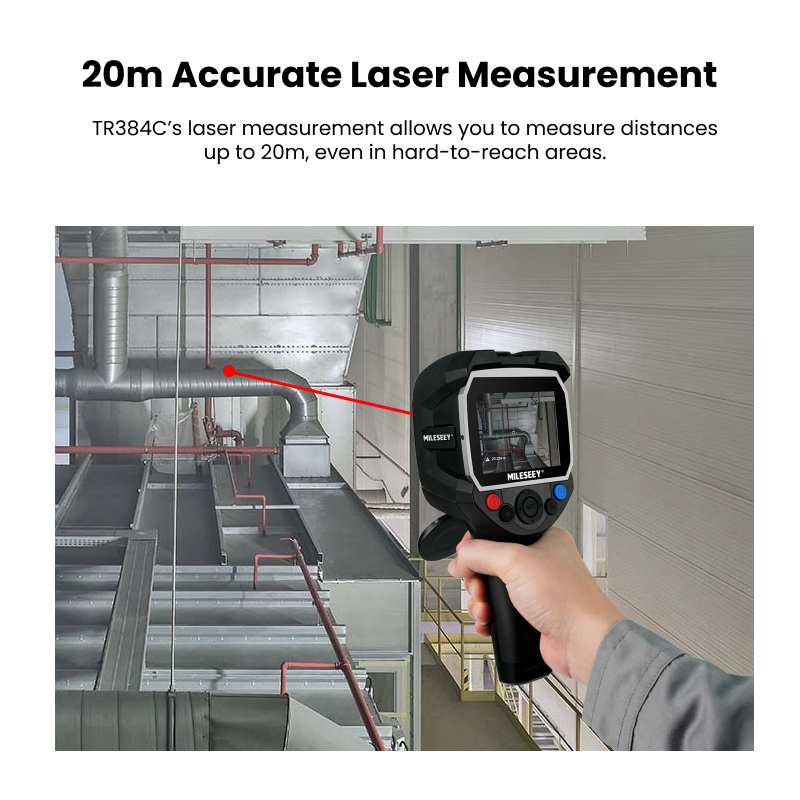

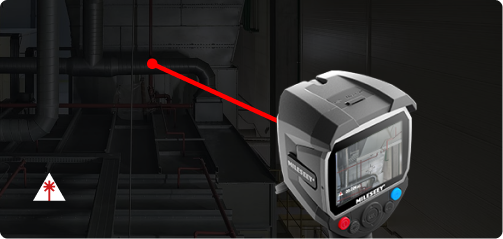

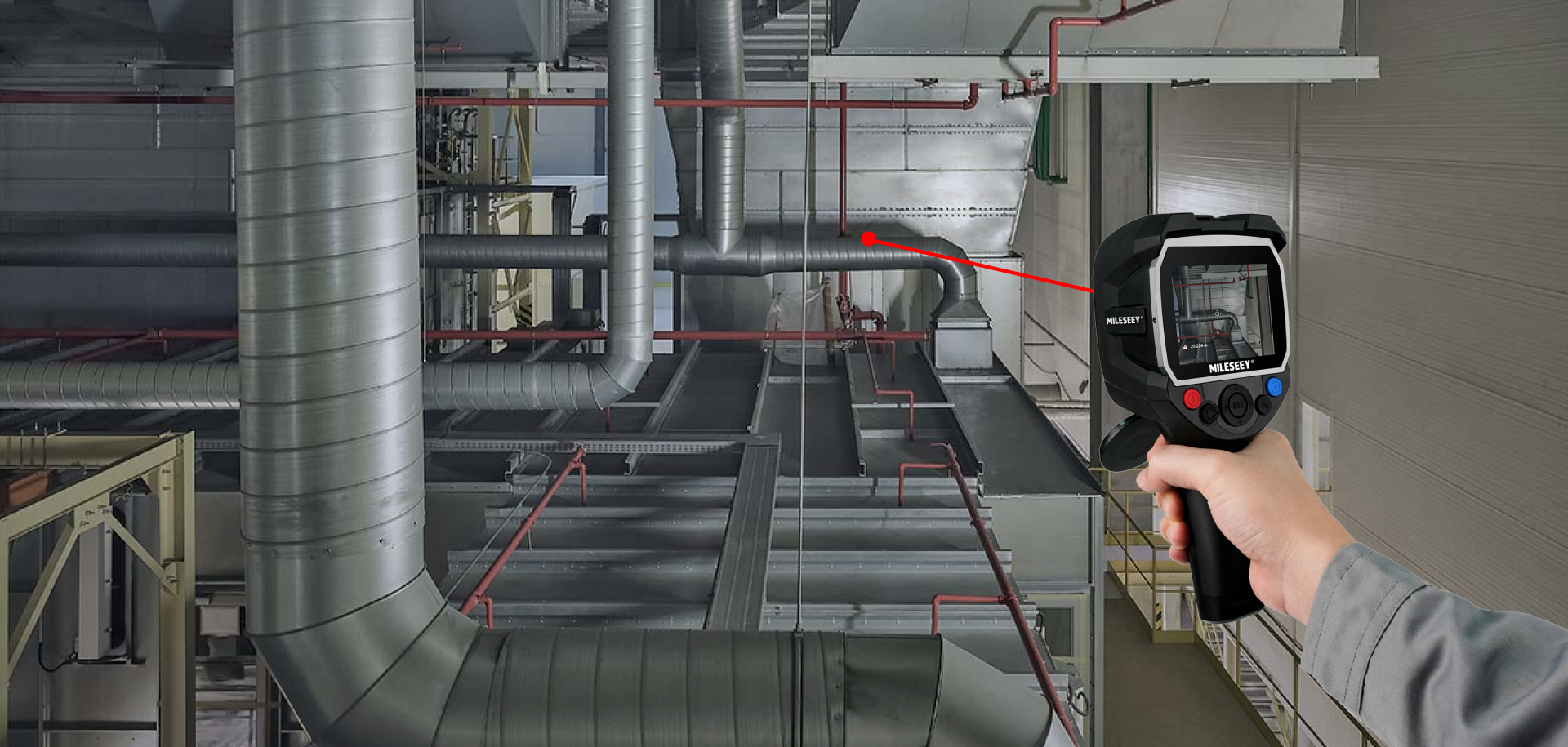

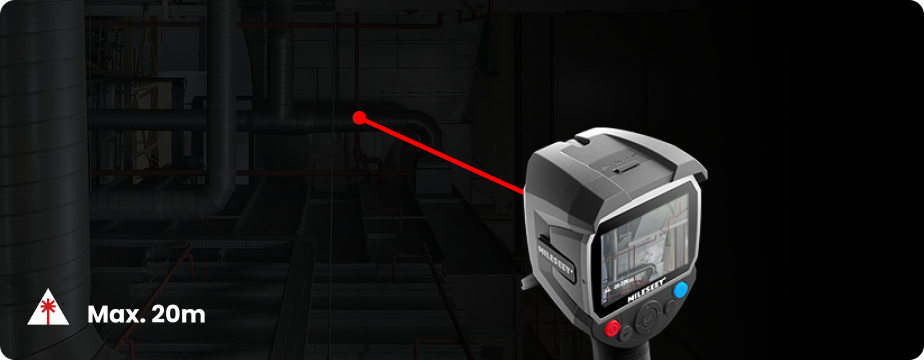

Accurate Laser Measurement up to 20m

Stay safe and efficient. TR384C’s laser measurement feature allows you to measure distances up to 20m with pinpoint accuracy, even in hard-to-reach areas.

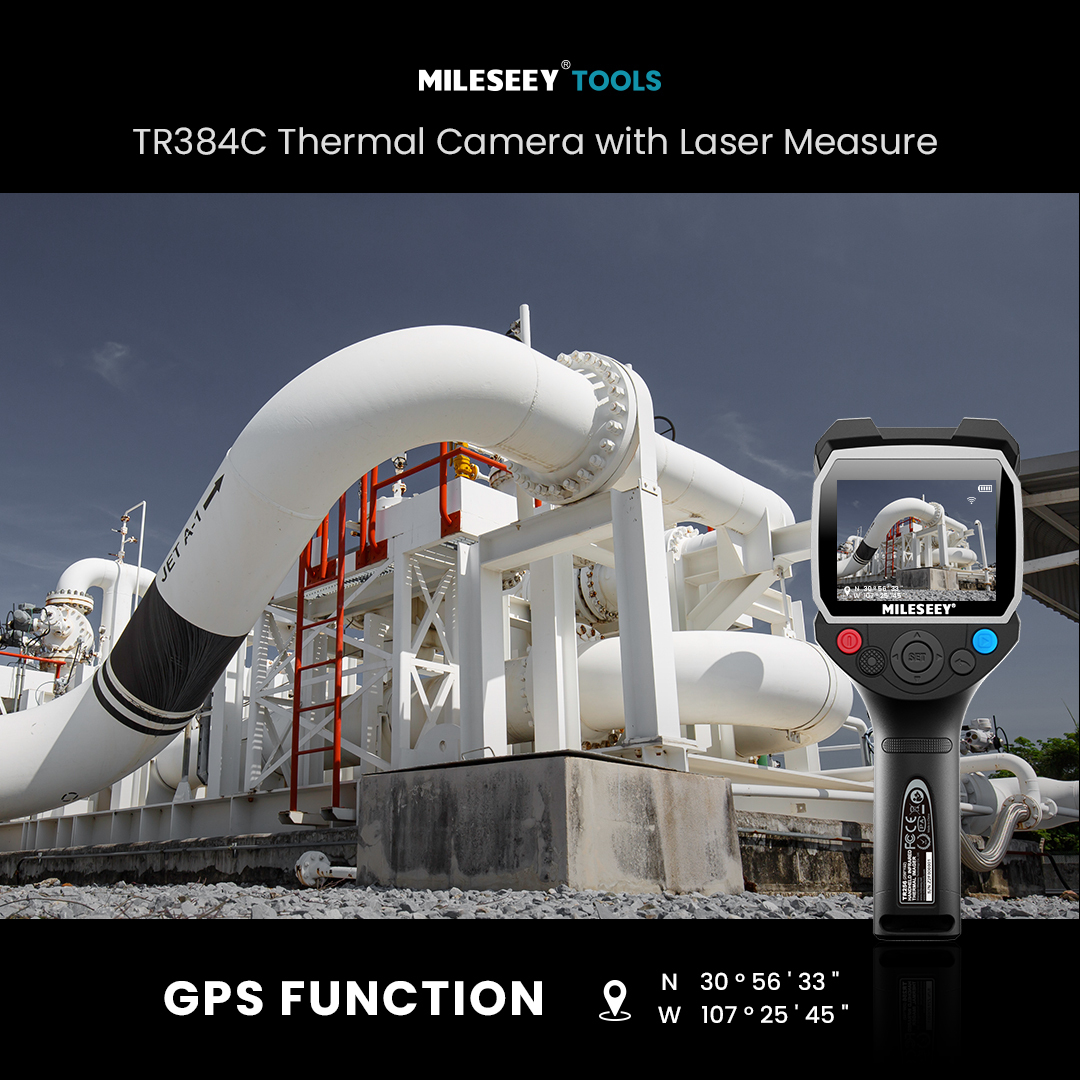

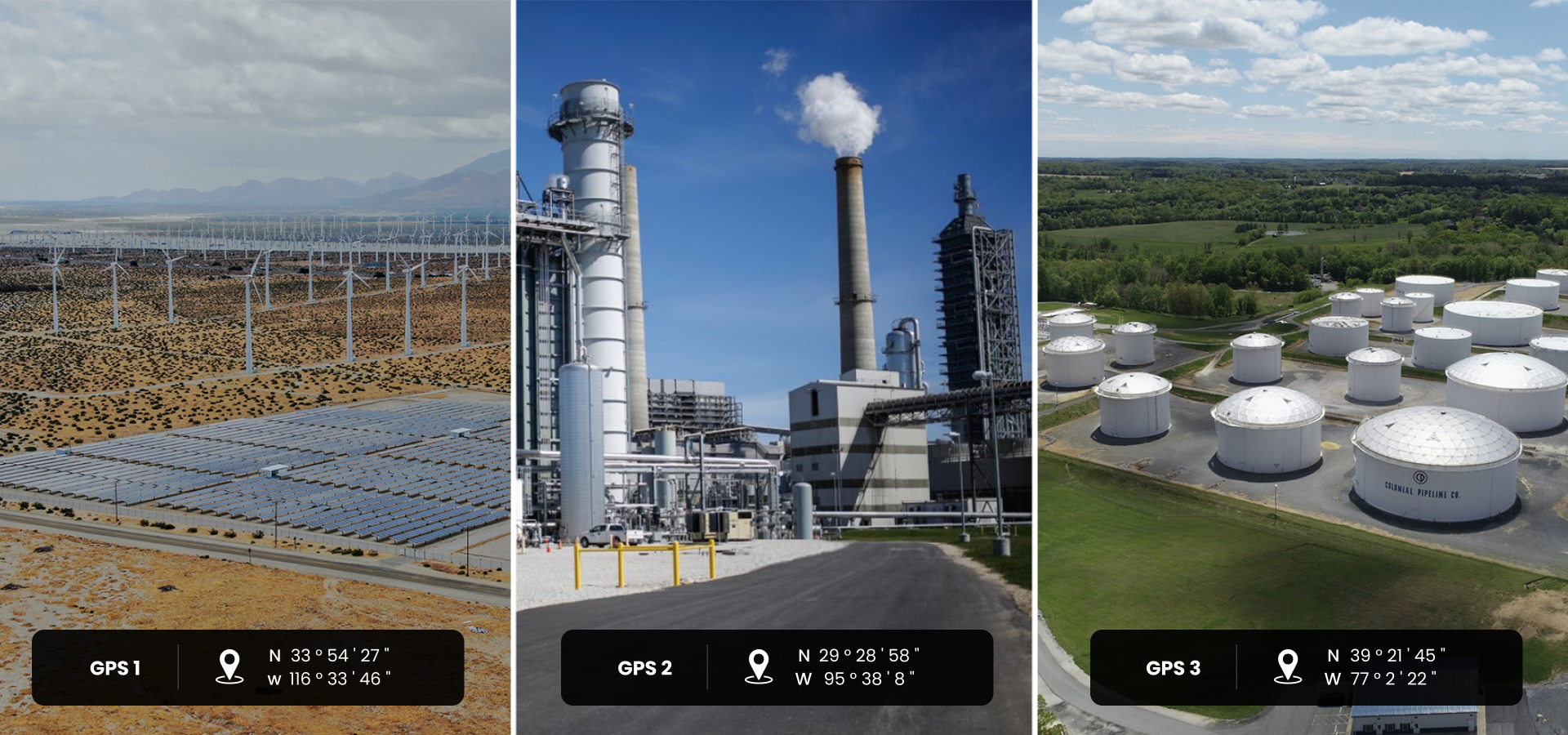

GPS Tracking for Accurate Positioning

Record precise coordinates of your inspection points with built-in GPS. Easily locate faults for revisits and create professional inspection reports.

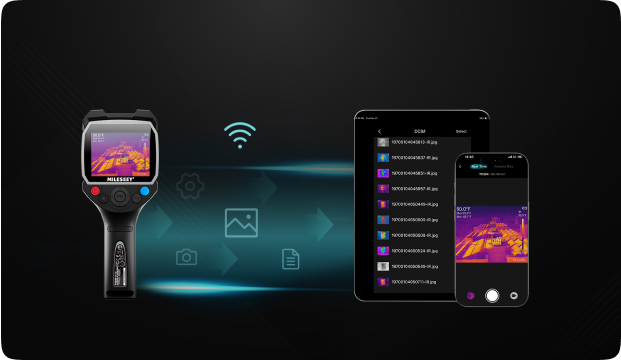

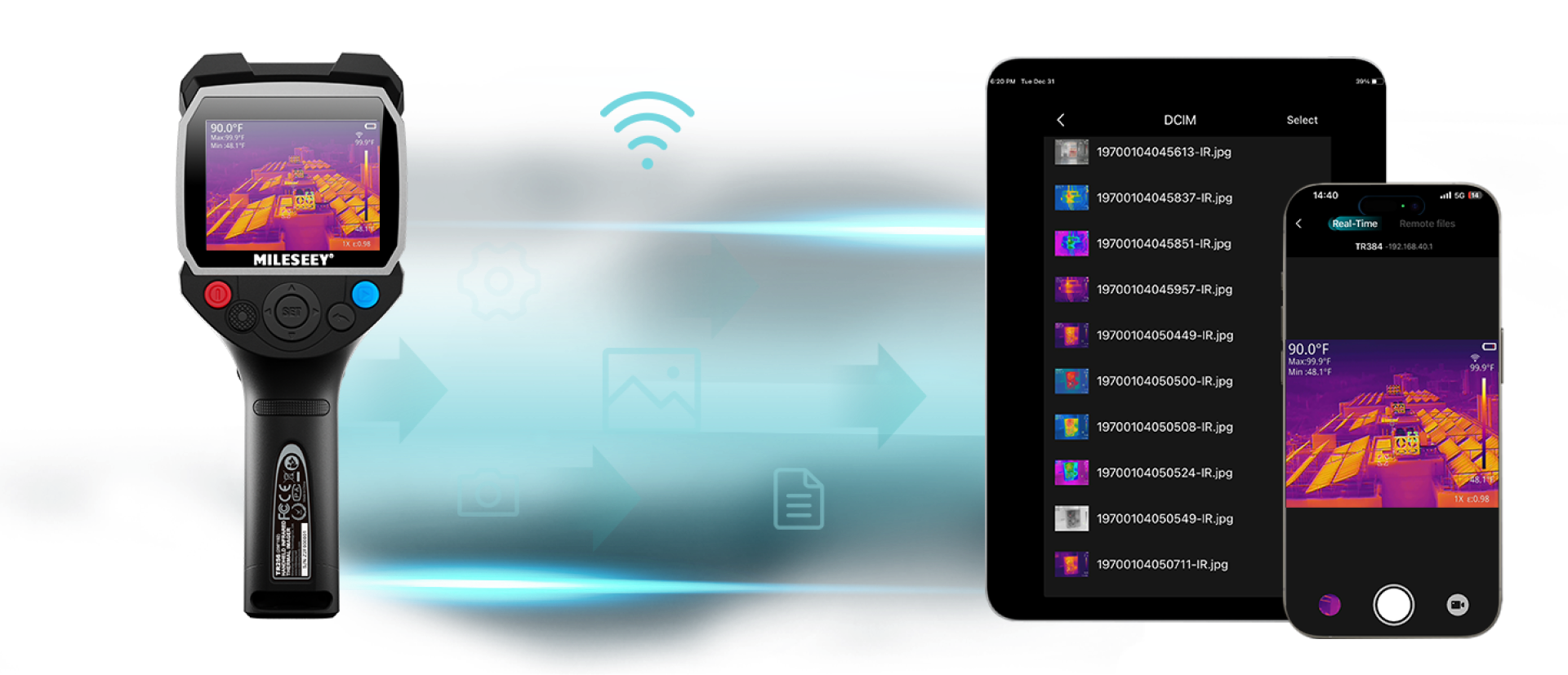

Unlock More Possibilities with the App

Connect TR384C to the "Thermal TP Series" app to view thermal imaging from your phone or tablet and manage data from there as well.

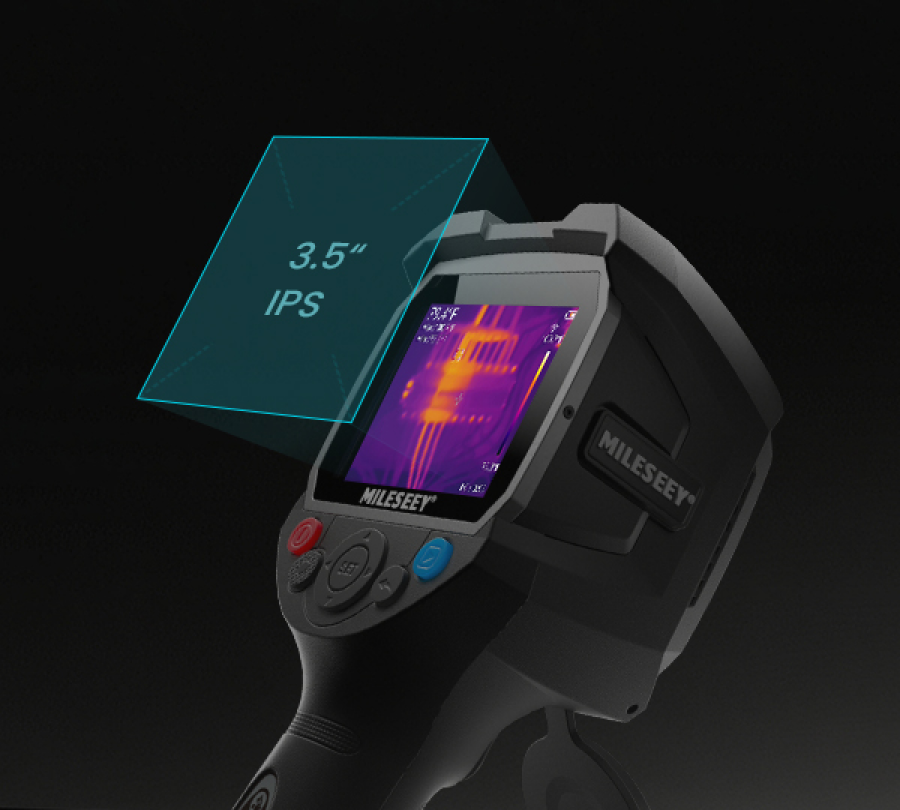

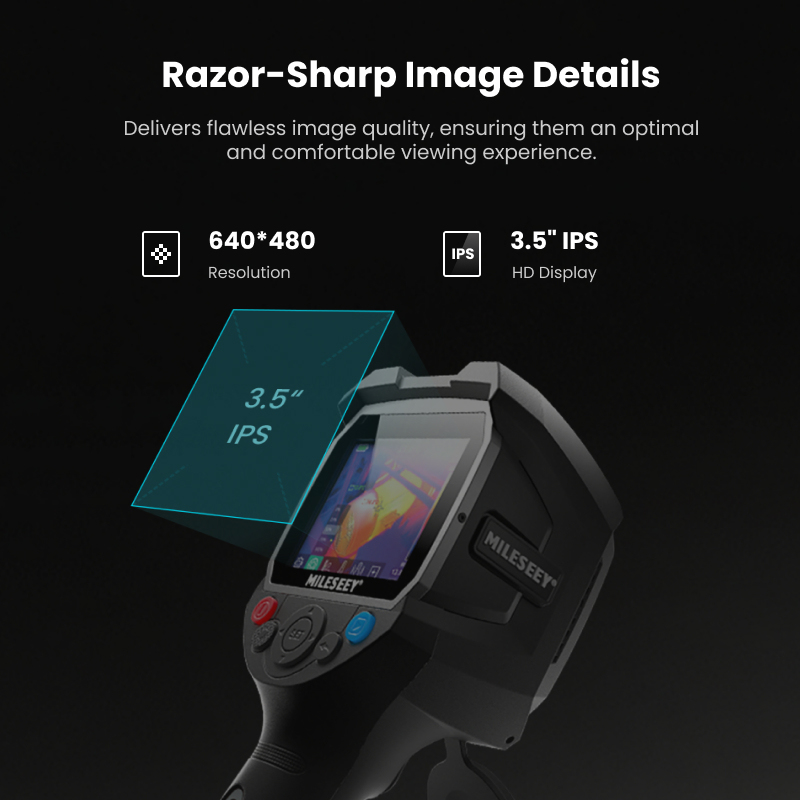

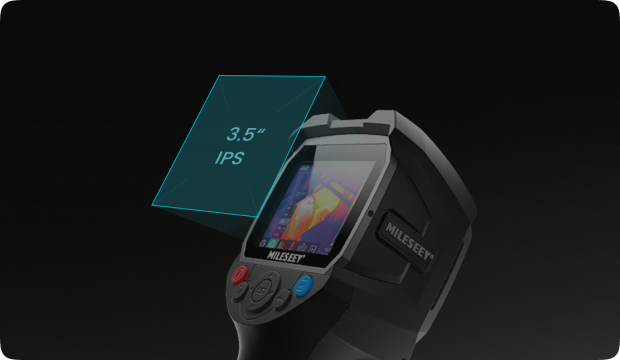

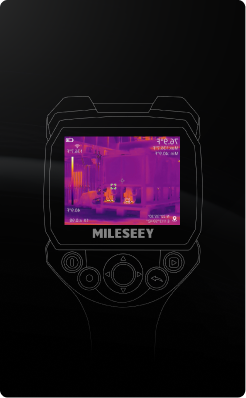

Enjoy Premium Visuals

An expansive 3.5" IPS HD display with resolution of up to 640*480 delivers flawless image quality, ensuring them an optimal and comfortable viewing experience.

640*480
Resolution
3.5" IPS
HD Display

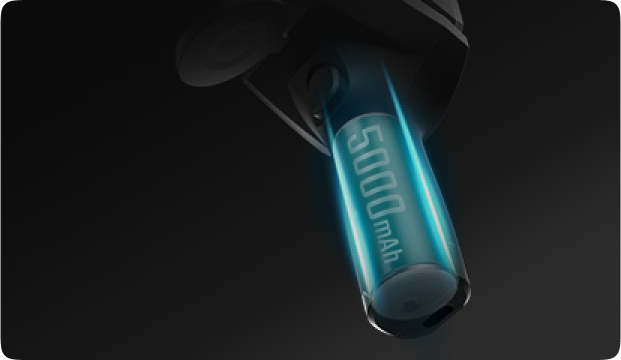

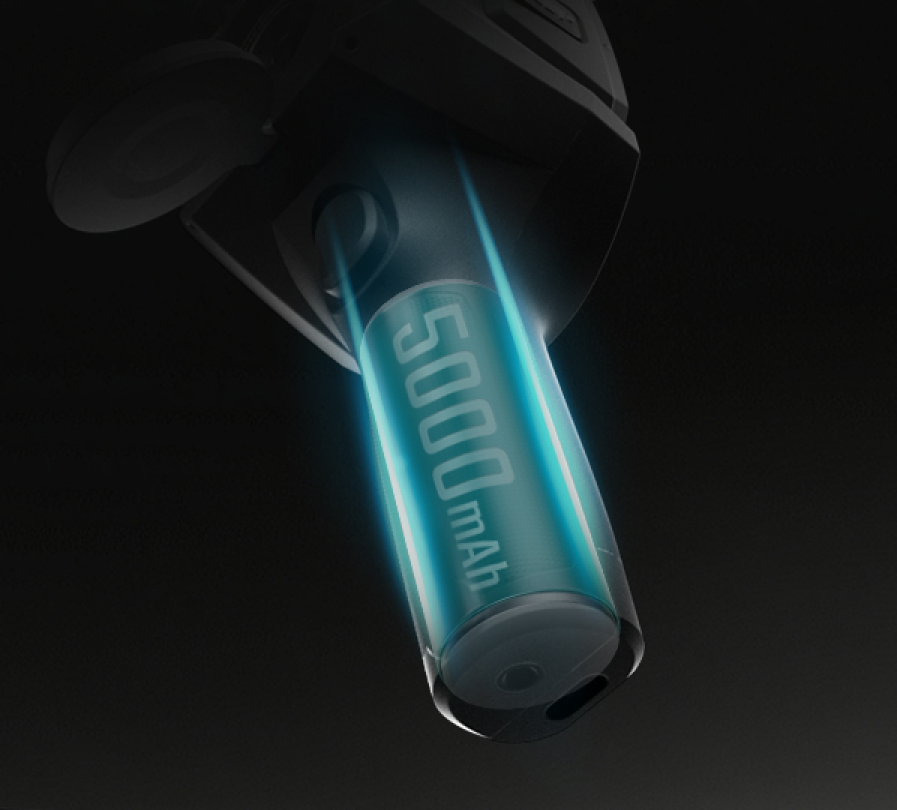

Stay Powered-up for All-Day Work

Built-in 5,000mAh lithium battery with auto power-off boasts an ultra-long battery life of up to 10 hours, easily covering all your inspection work for the day.

Max. 10hr
Continuous Use
Auto Power-off
(5min/10min/20min)
4hr
Charge Time

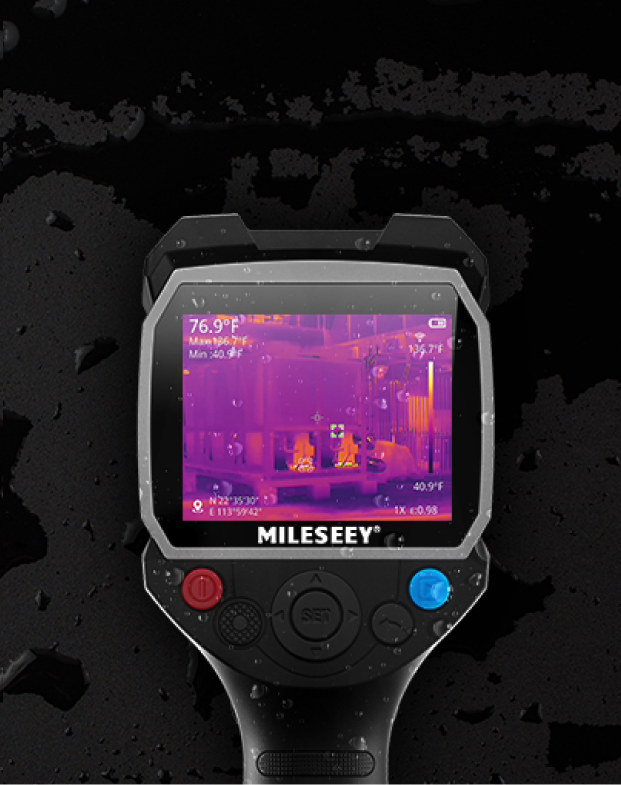

IP65 Protection

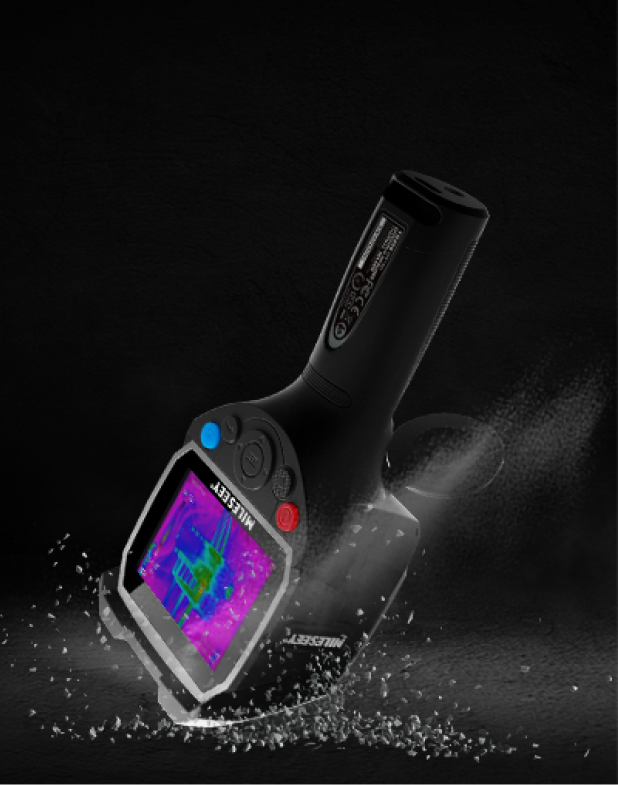

2 Meters Drop-Proof

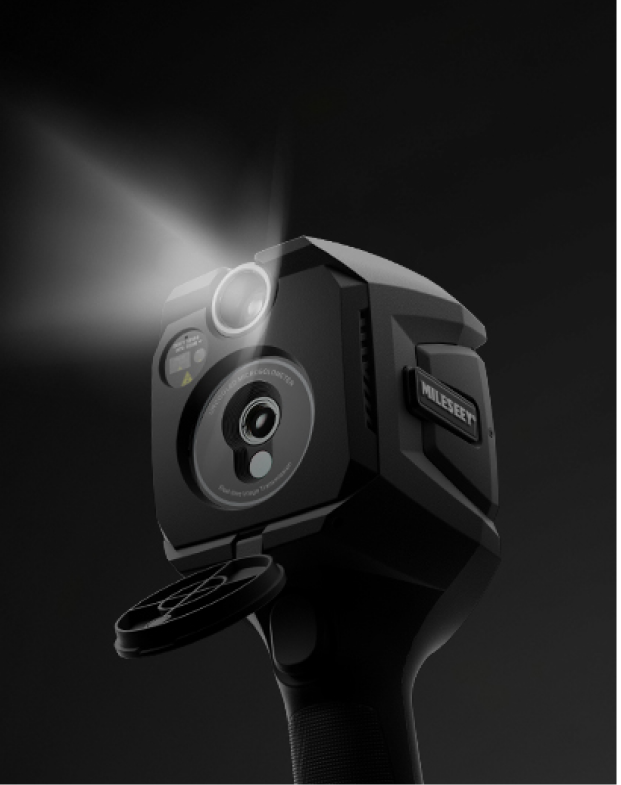

LED Light
270+ Patents
1,000,000+ Users
200+ Regions

Trusted by 1,000,000+ users across 200+ regions, MILESEEY Tools continues to lead innovation with 270+ patents.

TR384 Specs
Model Number TR384C
Thermal lmaging Pixels 384 × 288 (110,592 pixels)
Spectral Range 8 μm to 14 μm
HFOV 28° × 21°
Pixel Size 12 μm
Output Frame Rate 25 Hz
Thermal Sensitivity ≤40 mK
Detection Temperature Range -20°C to 550°C (-4°F to 1022°F)
Accuracy ±2°C or ±2%
Measurable Distance Range 2 m to 10 m (6.6 ft to 33 ft)
Laser Measured Distance 20 m (66 ft)
Color Palette 7
High/Low Temperature Alarm
Laser Distance
GPS
Wi-Fi
Display Size 3.5-inch
Display Resolution 640 × 480
Visible Light Resolution 2 megapixels
Interface USB-C port
Power 5,000 mAh / 3.7 V
Light White LED
Use Environment Temperature -10°C to 50°C (14°F to 122°F)
Storage Temperature -20°C to 60°C (-4°F to 140°F)
Dimensions 238 × 95 × 85.5 mm
Weight (including battery) 555 g
