Thermal Imaging Cameras for Renewable Energy Inspection: MILESEEY's Solar Panel Analysis Guide

Transforming the way we monitor and maintain solar installations through advanced thermal imaging technology

Introduction

In today's rapidly evolving renewable energy landscape, the efficiency and longevity of solar panel installations represent critical factors in determining their economic viability and environmental impact. As global solar capacity continues to expand—with installations expected to reach 1,500 gigawatts by 2025—the need for reliable, efficient inspection methods has never been more pressing. Enter thermal imaging technology: a revolutionary approach that's changing how we monitor, maintain, and optimize solar energy systems.

MILESEEY, a leader in precision measurement and inspection tools, has developed cutting-edge thermal imaging cameras specifically designed for renewable energy applications. These sophisticated devices are transforming the solar inspection process, enabling technicians, maintenance crews, and solar farm operators to identify potential issues before they escalate into costly failures.

This comprehensive guide explores how MILESEEY's thermal imaging technology is revolutionizing solar panel inspection, offering valuable insights for everyone from professional solar installers to sustainability-focused homeowners looking to maximize their renewable energy investments.

Understanding Thermal Imaging Technology

The Science Behind Thermal Detection

Thermal imaging cameras operate on a simple yet powerful principle: all objects emit infrared radiation based on their temperature. Unlike conventional cameras that detect visible light, thermal cameras capture this infrared energy, transforming temperature variations into a visible image through a process called thermography.

MILESEEY's thermal cameras utilize high-sensitivity thermal sensors that can detect temperature differences as small as 0.05°C. This exceptional precision is critical for solar panel inspection, where even minor temperature anomalies can indicate significant underlying issues.

How Thermal Imaging Differs from Visual Inspection

Traditional visual inspections of solar panels can only identify obvious physical damage like cracks or discoloration. However, many critical issues—such as internal connection failures, bypass diode problems, or moisture infiltration—remain invisible to the naked eye until they've already caused significant damage or efficiency losses.

Thermal imaging provides a crucial advantage by revealing these hidden problems through temperature patterns. A properly functioning solar panel exhibits a uniform thermal signature, while areas with abnormal heat patterns indicate potential problems requiring attention.

Common Solar Panel Issues Detected by Thermal Imaging

Hot Spots: The Silent Efficiency Killers

Hot spots represent one of the most common and damaging issues in solar panels. These localized areas of elevated temperature typically indicate cell damage, electrical resistance problems, or partial shading effects. Left unaddressed, hot spots can not only reduce overall system efficiency but may eventually lead to irreversible module damage.

MILESEEY's thermal cameras excel at identifying these problematic areas through their high thermal sensitivity and resolution. By detecting hot spots early, maintenance teams can implement targeted repairs before these issues propagate throughout the system.

Bypass Diode Failures

Bypass diodes play a crucial role in minimizing the impact of partial shading on solar panels. When these components fail, affected cells can overheat significantly, potentially causing permanent damage to the module. Thermal imaging makes bypass diode failures immediately apparent through their distinctive thermal signatures—typically appearing as abnormally hot rectangular sections within the panel.

PID Effect (Potential Induced Degradation)

The PID effect represents a more complex issue where solar panels gradually lose efficiency due to voltage potential differences between the cells and the frame. This degradation often manifests as a characteristic thermal pattern where cells near the frame edges show consistently higher temperatures. MILESEEY's advanced thermal imaging technology can detect these subtle thermal variations, allowing for early intervention before significant power loss occurs.

Connection Issues

Faulty electrical connections within solar arrays create resistance, generating excess heat at connector points. These issues might occur at junction boxes, string connections, or between panels. Regular thermal imaging surveys can quickly identify these problematic connections through their distinctive heat signatures, preventing potential fire hazards and efficiency losses.

MILESEEY's Thermal Imaging Solution Portfolio

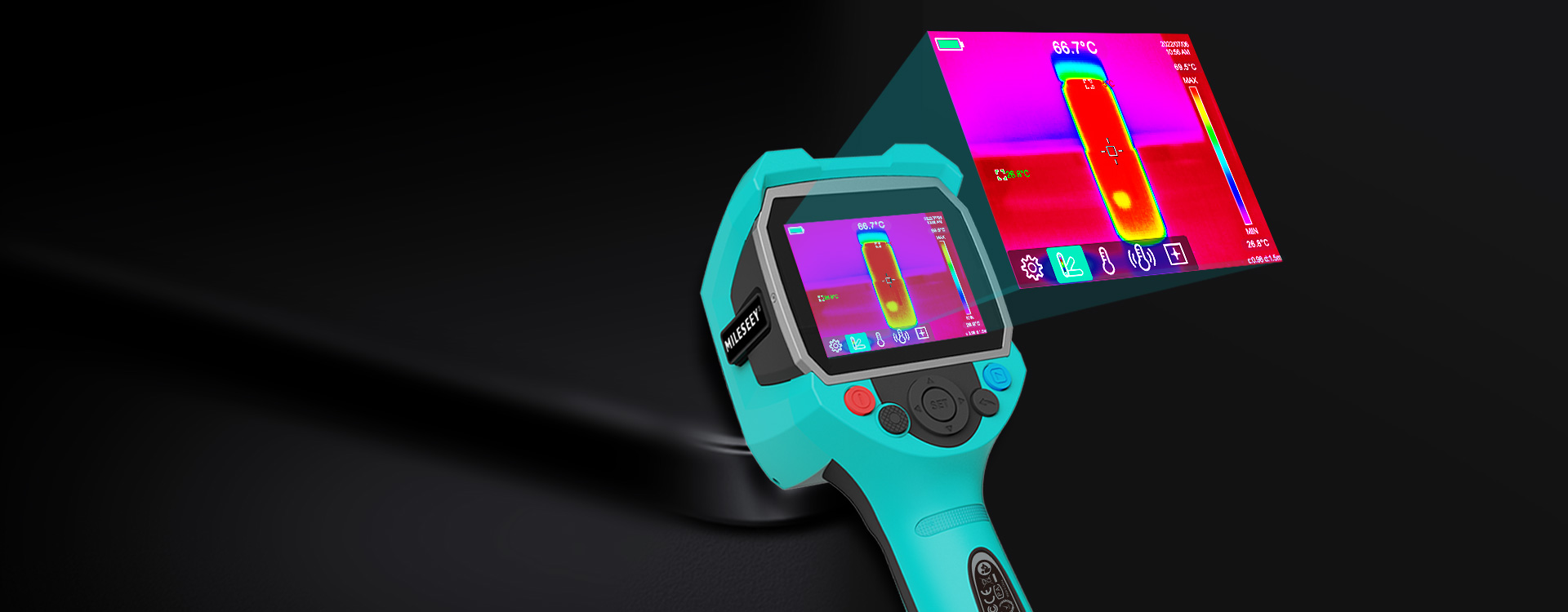

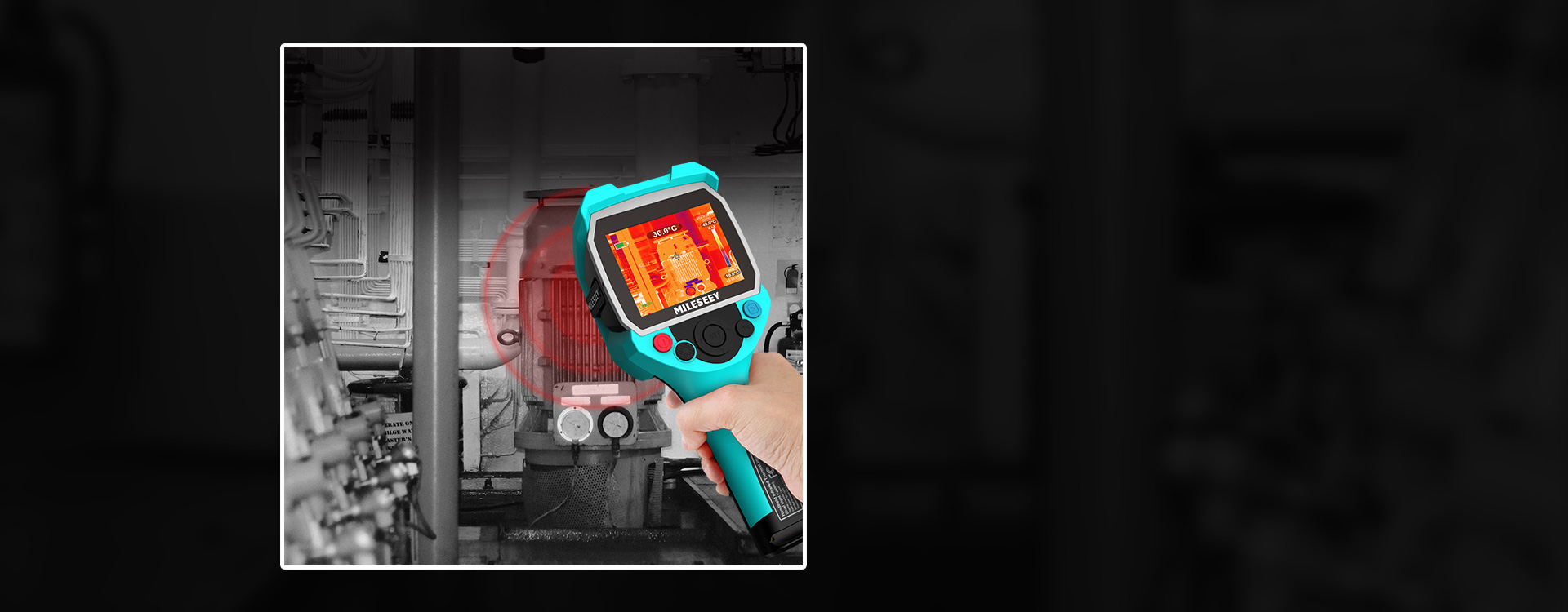

Professional-Grade Handheld Thermal Cameras

MILESEEY offers a comprehensive range of handheld thermal imaging cameras designed specifically for renewable energy applications. These portable devices combine high thermal resolution with user-friendly interfaces, making them ideal for on-site inspections. Key features include:

• High Thermal Sensitivity: Detect temperature differences as small as 0.05°C
• Visual-Thermal Image Fusion: Overlay thermal images with visual data for easier interpretation
• Customizable Alarm Settings: Program alerts for specific temperature thresholds
• Wireless Data Transfer: Seamlessly send inspection results to mobile devices or computers
• Extended Battery Life: Conduct full-day inspection routines without recharging

Best Practices for Solar Panel Thermal Imaging

Optimal Inspection Conditions

To achieve the most accurate thermal inspection results, follow these guidelines:

1. Weather Considerations: Conduct inspections on clear, sunny days with stable solar irradiance levels of at least 600 W/m².
2. Time of Day: Early morning inspections offer the advantage of detecting moisture ingress issues, while midday inspections provide optimal conditions for identifying most other anomalies.
3. Viewing Angle: Maintain a perpendicular viewing angle to the panels when possible to minimize reflection issues.
4. Consistent Methodology: Develop and follow a standardized inspection protocol for comparable results across multiple surveys.

Interpreting Thermal Images Correctly

Accurate interpretation of thermal images requires understanding normal operating temperatures and recognizing significant deviations. MILESEEY's thermal cameras include analysis software that assists in identifying these patterns through features like:

• Automatic Hot Spot Detection: Algorithms that highlight areas exceeding expected temperature ranges
• Temperature Range Optimization: Adjustable display settings to enhance visibility of subtle variations
• Historical Comparison: Tools to compare current images with previous inspection results
• Report Generation: Automated documentation features for comprehensive maintenance records

Integration with Predictive Maintenance Programs

The true power of thermal imaging emerges when integrated into comprehensive predictive maintenance strategies. By scheduling regular thermal inspections and tracking panel performance over time, operations teams can:

• Anticipate Failures: Identify degradation patterns before they lead to complete failures
• Optimize Maintenance Schedules: Focus resources on panels showing early warning signs
• Verify Repair Effectiveness: Confirm that maintenance actions have resolved identified issues
• Build Comprehensive System History: Develop detailed documentation of system performance over its operational lifetime

Return on Investment: The Economic Case for Thermal Imaging

Cost Savings Through Early Detection

The financial benefits of implementing thermal imaging inspection programs are substantial. Early detection of issues like hot spots or connection problems can prevent escalation to more severe failures requiring complete panel replacement. Consider these economic advantages:

• Extended System Lifespan: Proactive maintenance can add years to the solar system operational life
• Maintained Efficiency: Preventing degradation preserves system output capacity
• Reduced Downtime: Scheduled maintenance causes less disruption than emergency repairs
• Warranty Claim Documentation: Thermal imaging provides concrete evidence for warranty claims when manufacturer defects are identified

Case Study: Large-Scale Solar Farm

A 5MW solar farm implemented MILESEEY's thermal imaging inspection program, conducting quarterly drone surveys of all panels. In the first year, the program identified:

• 37 panels with developing hot spots
• 12 failed bypass diodes
• 8 faulty string connections
• 3 junction boxes with abnormal heating

By addressing these issues proactively, the facility prevented an estimated 3.2% annual production loss and avoided potential fire hazards from the overheating junction boxes. The total first-year ROI exceeded 300% of the thermal imaging program cost.

Future Trends in Thermal Imaging for Renewable Energy

AI-Enhanced Analysis

The next generation of MILESEEY thermal imaging solutions incorporates artificial intelligence algorithms that can automatically identify potential issues and even predict failures before they occur. These systems learn from vast databases of thermal images, continuously improving their diagnostic capabilities.

Integration with IoT Platforms

Emerging thermal imaging systems are increasingly integrated with broader Internet of Things (IoT) platforms, creating comprehensive monitoring ecosystems. These connected solutions combine thermal data with electrical performance metrics, weather information, and predictive analytics to provide unprecedented insights into solar system health.

Conclusion

As the renewable energy sector continues its rapid growth, the importance of efficient, reliable inspection methods grows proportionally. MILESEEY's thermal imaging cameras represent a critical technology enabling the solar industry to maximize system efficiency, extend operational lifespans, and ensure the economic viability of renewable energy investments.

Whether you're managing a utility-scale solar farm or maintaining a residential installation, thermal imaging technology offers unparalleled visibility into system health, transforming maintenance from a reactive necessity into a proactive strategy for optimization.

By incorporating MILESEEY's thermal imaging solutions into your solar maintenance protocol, you're not just detecting problems—you're embracing a forward-thinking approach that enhances the sustainability, reliability, and profitability of your renewable energy investments for years to come.
