MILESEEY Thermal Imaging for HVAC Professionals: Beyond Basic Diagnostics

In the competitive world of HVAC services, the professionals who thrive are those who leverage cutting-edge technology to deliver superior diagnostics, faster service, and more comprehensive solutions. Among the tools revolutionizing the industry, thermal imaging cameras stand out as game-changers—and the MILESEEY TR120 is quickly becoming the go-to device for forward-thinking technicians. At an accessible price point of $299.99, this dual-camera thermal imager offers capabilities that extend far beyond basic temperature measurements, transforming how HVAC professionals approach their daily challenges.

The Evolution of HVAC Diagnostics

Traditional HVAC diagnostics have long relied on a combination of experience, guesswork, and basic tools like pressure gauges and thermometers. While these methods have served the industry for decades, they're inherently limited—often requiring invasive procedures or multiple diagnostic steps that consume precious time and resources.

Enter thermal imaging technology. What once was reserved for specialized applications with price tags in the thousands has become accessible to everyday HVAC professionals. The MILESEEY TR120 represents this democratization of advanced technology—bringing professional-grade thermal imaging capabilities at a fraction of the cost of premium models while maintaining impressive functionality.

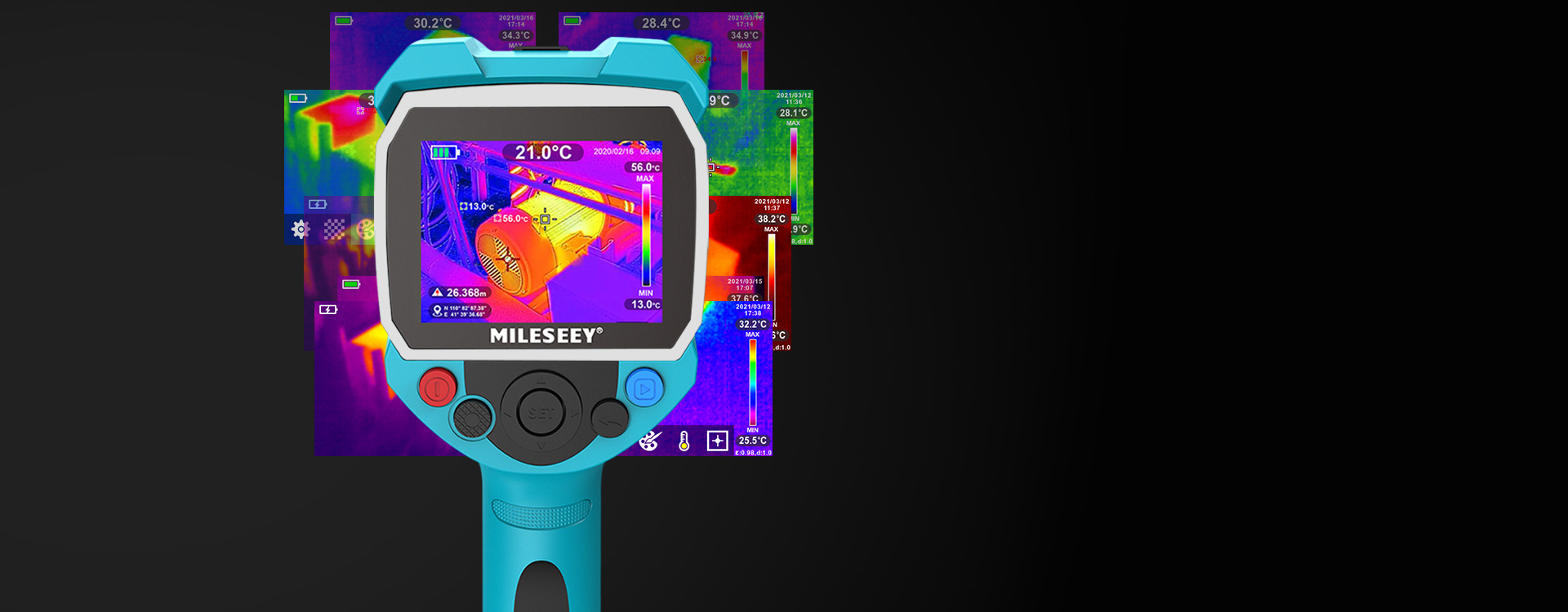

The MILESEEY TR120: A Technical Overview

Before diving into applications, let's understand what makes the TR120 particularly suited for HVAC work:

• 120×90 IR Resolution: While not the highest resolution on the market, this provides sufficient detail for most HVAC applications while keeping the price point accessible
• Wide 50°×63.4° Field of View: Allows technicians to capture large areas in a single image—perfect for scanning entire ductwork sections or examining large equipment

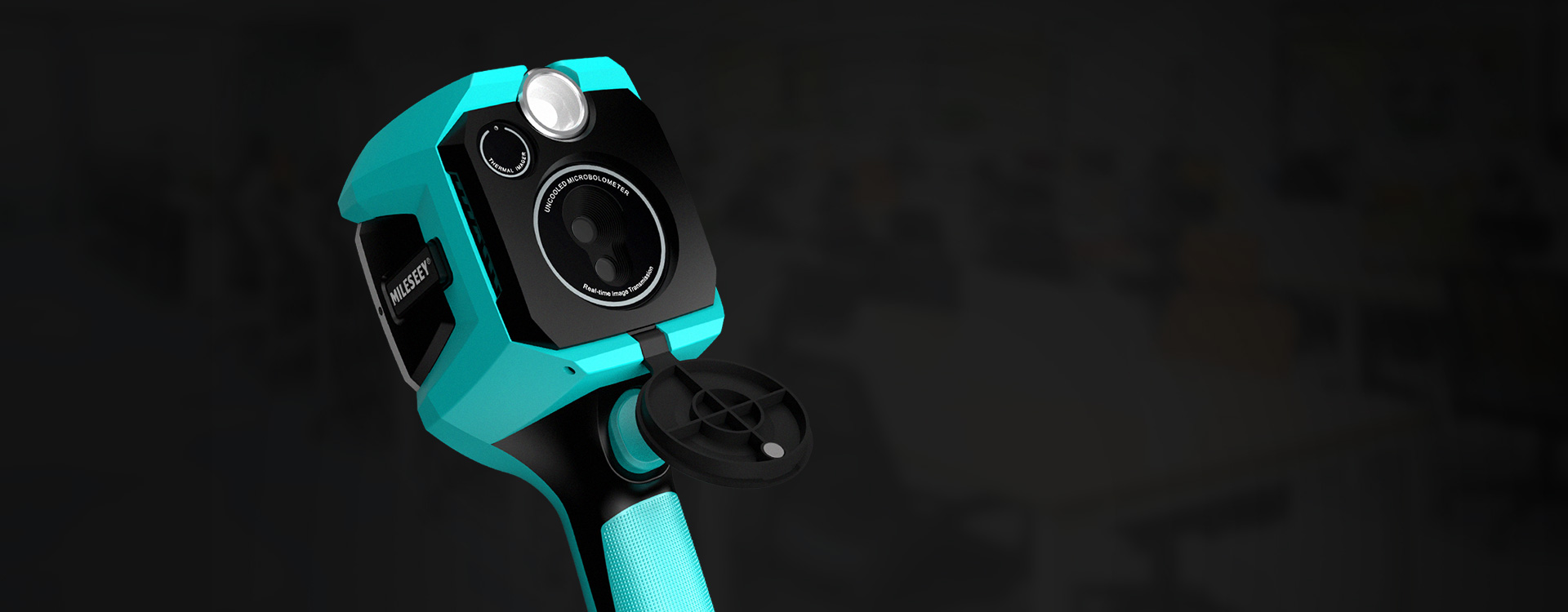

• Dual-Camera System: The combination of thermal and visible light cameras enables overlay functionality that makes interpreting thermal images significantly easier for both technicians and customers
• Temperature Range of -20℃ to 450℃ (4℉ to 842℉): Covers the entire spectrum needed for HVAC applications, from cold refrigerant lines to overheating components
• Auto Hot/Cold Spot Tracking: Automatically identifies temperature extremes—crucial for quickly pinpointing issues in complex systems
• 6 Color Palettes: Different visualization options optimize visibility for various scenarios (iron red for electrical issues, rainbow for insulation problems, etc.)
• 10-Hour Battery Life: Supports a full day's work without recharging—essential for field technicians
• Large 3.5" Display: Reduces eye strain during extended use and makes it easier to show findings to customers on-site

The TR120's substantial 5000mAh rechargeable battery deserves special mention, as it eliminates the frustration of carrying spare batteries or finding yourself with a dead tool halfway through a job. Additionally, the 2000-image storage capacity means you'll never run out of space for documenting your findings.

Beyond Basic Diagnostics: Advanced HVAC Applications

Where the TR120 truly shines is in its ability to transform HVAC workflows. Let's explore the applications that go beyond basic temperature measurements:

1. Comprehensive Ductwork Analysis

Traditional methods of evaluating ductwork often involve spot checks that can miss critical issues. With the TR120, HVAC professionals can:

• Visualize Airflow Patterns: Immediately identify restrictions, blockages, or areas of poor flow by examining temperature gradients
• Detect Leaks Non-Invasively: Pinpoint the exact location of leaks without disassembling ductwork, saving hours of labor
• Evaluate Insulation Integrity: Instantly identify areas where insulation has degraded or was improperly installed
• Document Before/After Improvements: Provide customers with visual proof of system improvements by comparing thermal images before and after service

One HVAC technician reported reducing ductwork diagnosis time by 75% after incorporating the TR120 into their workflow, transforming what was once a half-day job into a quick one-hour assessment.

2. Electrical System Evaluation

HVAC systems are increasingly complex electrical networks, and problems often manifest as heat anomalies before causing system failure:

• Identify Overloaded Circuits: Spot abnormal heating in wiring, connections, and components before they fail
• Detect Imbalanced Loads: Visualize load distribution across three-phase systems to prevent premature equipment failure
• Find Loose Connections: Quickly locate resistance points where connections are deteriorating
• Safety Verification: Confirm that electrical components are operating within safe temperature ranges

The TR120's auto hotspot detection is particularly valuable here, as it automatically highlights the hottest points in complex electrical panels, drawing immediate attention to potential problems.

3. Compressor and Refrigerant System Diagnostics

Refrigeration issues are among the most challenging aspects of HVAC work, but thermal imaging transforms the diagnostic process:

• Refrigerant Flow Visualization: Trace the path of refrigerant through the system by observing temperature changes
• Identify Restriction Points: Spot abnormal temperature differentials indicating restrictions or blockages
• Detect Refrigerant Leaks: Find the source of leaks by observing cooling patterns as refrigerant escapes and evaporates
• Evaluate Compressor Performance: Analyze heat signatures to determine if compressors are functioning efficiently

A commercial HVAC specialist noted that the TR120 helped identify a partial blockage in a refrigerant line that multiple pressure tests had missed—saving a client from unnecessarily replacing an expensive compressor.

4. Building Envelope Assessment

The best HVAC professionals know that system performance is directly tied to building integrity. The TR120 enables technicians to provide value beyond traditional HVAC services:

• Air Infiltration Detection: Identify points where outside air penetrates the building envelope, affecting system performance
• Insulation Evaluation: Quickly scan walls, ceilings, and floors to identify insulation gaps or degradation
• Moisture Detection: Find hidden moisture that can impact indoor air quality and system efficiency
• Solar Heat Gain Analysis: Determine how sunlight affects different areas of the building throughout the day

By addressing these building envelope issues alongside system maintenance, technicians can deliver more comprehensive energy efficiency improvements—often reducing system loads by 10-30% in poorly sealed or insulated buildings.

5. Preventive Maintenance Revolution

Perhaps the most transformative application of the TR120 is in preventative maintenance programs:

• Baseline Documentation: Create thermal profiles of systems operating correctly to use as future reference points
• Early Detection of Developing Issues: Identify subtle temperature changes that precede component failure
• Performance Trending: Track system performance over time by comparing thermal signatures from regular maintenance visits
• Customer Education: Use visual evidence to help customers understand the value of addressing minor issues before they become major failures

Many HVAC companies are now incorporating thermal imaging into their maintenance contracts as a premium service, with some reporting 30% higher contract values and dramatically improved customer retention rates.

Practical Implementation: Getting Started with Thermal Imaging

For HVAC professionals new to thermal imaging, there's a learning curve to maximize the TR120's potential. Here are key considerations:

Understanding Emissivity

Different materials emit infrared radiation differently, which affects temperature readings. The TR120 allows adjustment of emissivity settings, which is crucial for accurate measurements across various surfaces in HVAC systems. Metals typically have lower emissivity values (0.1-0.3), while non-metallic surfaces like ductwork insulation have higher values (0.9-0.95).

Interpreting Thermal Patterns

Temperature readings are just one aspect of thermal imaging—understanding patterns is equally important. For example:

• Gradual temperature changes usually indicate normal operation or conduction
• Sharp temperature boundaries often signal insulation failures or air leaks
• Circular hot spots typically suggest electrical problems or restrictions
• Asymmetrical patterns on symmetrical equipment almost always indicate problems

Integration with Service Workflows

To maximize ROI on the TR120, consider implementing these practices:

1. Initial System Scans: Begin every service call with a quick thermal scan to identify potential issues not mentioned by the customer
2. Documentation Protocol: Establish standardized procedures for capturing and storing thermal images for client records
3. Before/After Verification: Document conditions before and after repairs to demonstrate the value of your service
4. Report Integration: Incorporate thermal images into customer reports with clear annotations explaining the findings

The Business Case for Thermal Imaging

Beyond technical advantages, the TR120 delivers compelling business benefits:

Customer Confidence and Education

There's something powerful about showing rather than telling. When customers can see colorful visual representations of their HVAC problems, they better understand the value of proposed solutions. Many technicians report higher approval rates on recommended services when supported by thermal images.

Competitive Differentiation

In markets where HVAC services are increasingly commoditized, thermal imaging capabilities signal technological sophistication and thoroughness. Companies prominently featuring thermal diagnostics in their marketing materials report higher lead conversion rates and can often command premium pricing.

Expanded Service Offerings

The TR120's versatility enables diversification into adjacent services:

• Energy audits
• Building envelope assessments
• Electrical system inspections
• Moisture detection services
• Documentation for insurance claims

Training and Expertise Development

Thermal imaging accelerates technician learning curves. New technicians paired with the TR120 develop system understanding more quickly by visually connecting theoretical knowledge with real-world temperature patterns.

Conclusion: The Future of HVAC Diagnostics

The MILESEEY TR120 represents a pivotal point in the democratization of advanced diagnostic technology for HVAC professionals. At $299.99, it delivers capabilities that were unimaginable at this price point just a few years ago. For forward-thinking HVAC businesses, thermal imaging isn't just another tool—it's a transformative approach that enables more accurate diagnostics, more efficient workflows, and more compelling customer communications.

As the industry continues to evolve toward predictive maintenance and comprehensive building performance optimization, thermal imaging will become not just an advantage but a necessity. The professionals embracing this technology today are positioning themselves at the forefront of this evolution—delivering superior value while operating with unprecedented efficiency.

Whether you're a solo technician looking to differentiate your service or a large operation seeking to standardize diagnostic protocols, the TR120 offers an accessible entry point into the world of professional thermal imaging. The question isn't whether you can afford to add thermal imaging to your toolkit—it's whether you can afford not to.

Author's Note: While this article focuses on the MILESEEY TR120, the principles and applications discussed apply to thermal imaging in HVAC work broadly. Always follow manufacturer training recommendations and develop proper technique to ensure accurate thermal readings.
