How to Build a Workbench: Precise Measurements for the Perfect Height

A sturdy workbench is a cornerstone for the DIYer, the woodworker, and the garage workspace. But before one can start the process of building materials, one has to tackle some essential questions like how to build a workbench, how high should a workbench be, and the tools needed for precision.

In this guide, you will proceed step by step through the process of building a workbench using the appropriate measurement tools, like digital tape measure with laser for high levels of precision.

So, let's get started.

How High Should a Workbench be?

The height of your workbench impacts both comfort and efficiency. If your bench is too low, you may experience back strain. If it's too high, you might have difficulty controlling tools.

So, how high is the workbench supposed to be? It's important to follow the ergonomic principle that the work surface should be at a height that allows you to work comfortably without hunching or straining. The optimum height will depend upon your primary use.

1. Standard woodworking bench height: 34-36 inches
2. Assembly & general workbench: 36-39 inches
3. Workbenches for detailed work or precision work: 39-42 inches

Using a tape meausre or digital laser tape measure can also help you determine the optimum ergonomic height for your unique needs.

How to Build a Workbench?

Now, once we know how high your workbench should be, we can proceed on building one. Here's how to make a workbench:

Materials You'll Need

Before diving into the workbench building process, gather the following materials:

1. Plywood or hardwood panel (for the work surface)
2. 2x4 lumber (for the frame and legs)
3. Screws and wood adhesive
4. Saw (circular saw or table saw)
5. Drill and screwdriver
6. Clamps
7. Level and Square
8. Digital tape measure (precise measurements)

Step-by-Step Guide: How to Build Workbench

Here's a detailed, step-by-step guide that will help you learn how to build workbench:

Step 1: Measure and Plan

Start by setting your workbench desired height. One good technique is by being naturally erect when you stand and your hands hanging easily by your side and measuring from the floor level up to your wrist using the digital measuring tape. This measurement tends to provide you the ergonomic workbench height preventing you from having to strain your back and your shoulders.

If you work on multiple projects simultaneously, you will find useful an adjustable workbench. Others prefer workbenches where the leg parts can be separated or the base is adjustable for different jobs. A laser-enabled digital tape measure will help you measure accurately, especially when measuring over distances far apart or for multiple pieces of wood.

Additionally, take space into account for where your workbench will be placed. Provide some space around the workbench for you to maneuver around and for the workbench to fit conveniently into your workspace.

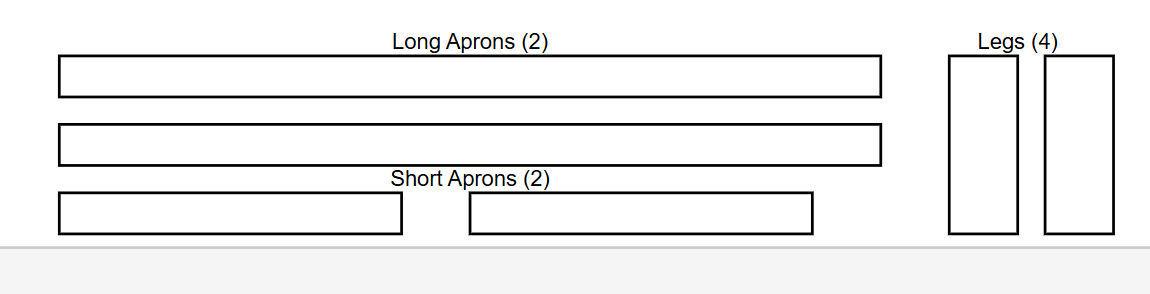

Step 2: Cutting the Frame and the Legs

Once you've chosen your desired length, you can now make the frame and leg pieces you require. Carefully make the cuts using a table saw or circular saw:

1. Four legs at your desired level. If you're using thicker woods, make the cuts even and straight for support.
2. Two long aprons (back and front pieces) the length of your workbench. These provide structural support and also help maintain the work surface level.
3. Two short side aprons for extra support.
4. Bottom shelf supports (optional) when you will be installing the lower shelf for increased space for storing things.

Before moving on to the assembly, double-check all your measurements using your electronic tape measure. Accuracy here will make your workbench level and solid when you assemble it.

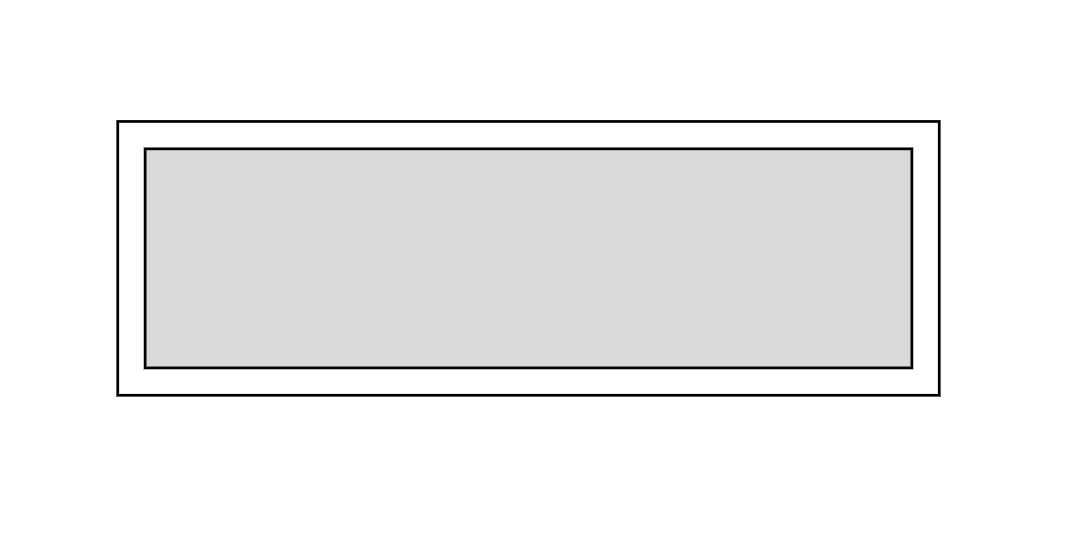

Step 3: Assemble the Frame

Now that all the pieces are cut, lay the frame out onto the level surface before you assemble them together.

1. Connect the long and short aprons to form a rectangular frame.
2. Use srews and wood adhesive at each corner for reinforcement. Ensure each joint is placed correctly before tightening the screws.
3. Use a square to check that all corners are at 90-degree angles—this prevents wobbling or instability.
4. Finally, use the level tool to make the frame level and even against the ground.

A misaligned frame will make the work surface not level, and you will need to make the necessary adjustments before you can continue.

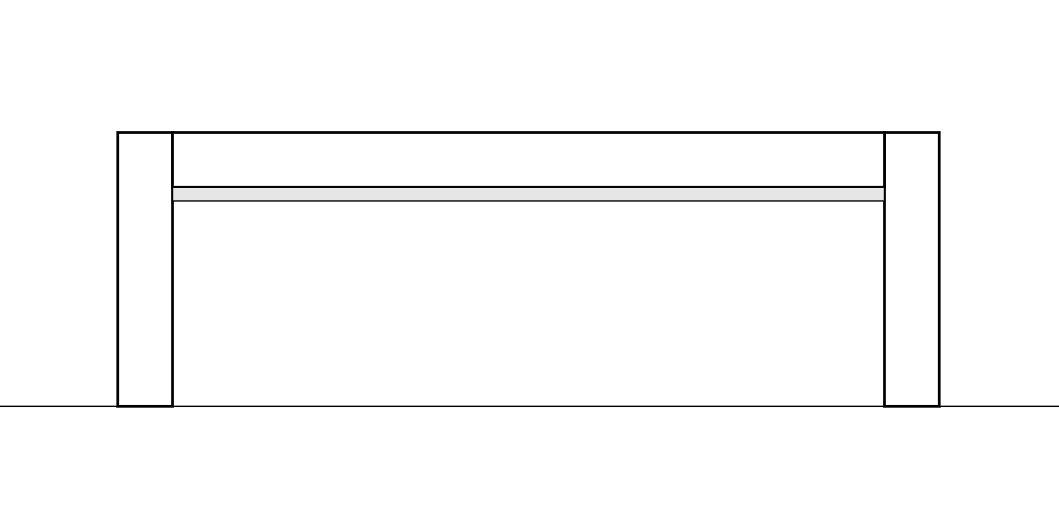

Step 4: Attach the Legs

Now, time to install 4 legs onto the frame.

1. Position each leg at a corner of the frame.
2. Secure the legs to the frame using screws and wood glue.
3. Make sure the legs are straight and perpendicular to the frame.
4. Check that the entire structure is level on the ground.

If anything isn't aligned properly, make adjustments now.

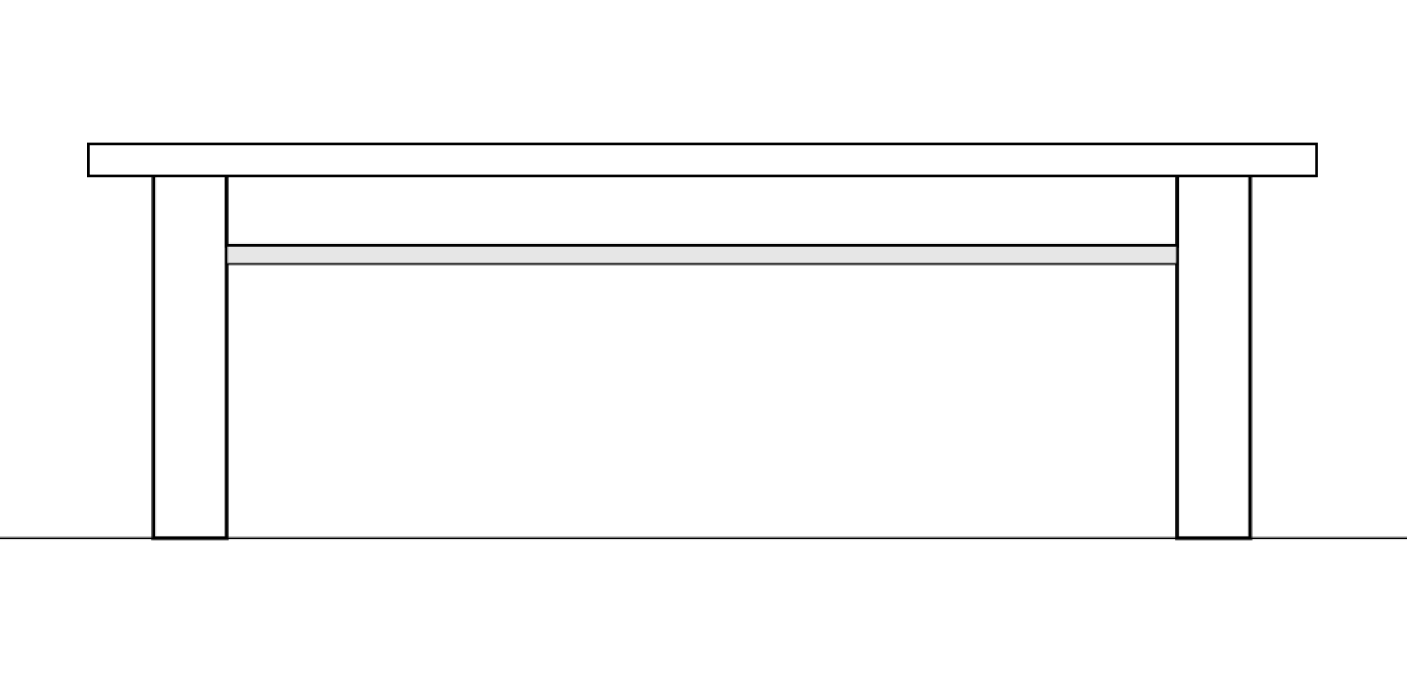

Step 5: Install the Work Surface

Once your frame is secure, you can now mount the work surface. Plywood, hardwood, or MDF can be utilized, depending on your preference. A thicker surface (minimum ¾-inch) will provide you with durability and support for heavy projects.

1. Lay the work surface onto the frame and level it level.
2. Secure it using evenly spaced screws around the edges, not to warp or shift over the passing years.
3. Use a digital tape measure to double-check the level and ensure the overhang is even all the way around.

For additional longevity, coat the surface using polyurethane or some protective finish. This will provide stain, moisture, and general wear and tear protection.

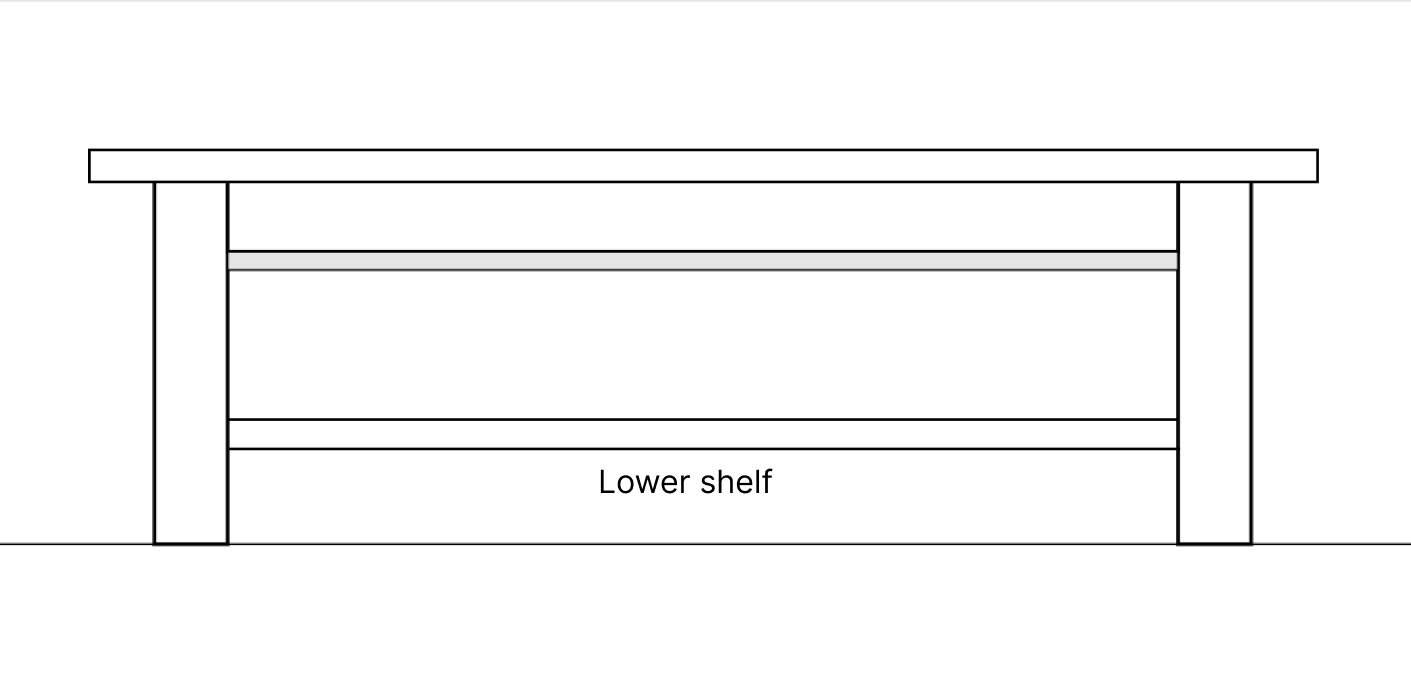

Step 6: Install Bottom Shelf (Optional)

If you require some extra space for storing something, the best solution is to install a lower shelf.

1. Cut a piece of plywood to the frame dimensions.
2. Secure it against the supports for the bottom shelf you previously cut.
3. Attach these supports onto the legs using the provided screws, holding them level.
4. Place the shelf onto the very top and secure it.

This bottom shelf is available for tools, materials, or even bins for added organization, keeping your work surface tidy.

Step 7: Finishing Touches

Before putting your workbench into operation, make some final preparations for its longevity and usefulness:

1. Sand all the edges using fine-grit sandpaper to smooth the uneven spots and avoid splinters.
2. Apply a protective finish (polyurethane, stain, or paint) over your workbench for protection from the elements and longevity.
3. Install additional features like a vise, power strip, or pegboard backing for added utility.

By following the steps described here, you will possess a strong, durable workbench for your workspace.

Conclusion

By following these guidelines, you will know exactly how to build a workbench using the appropriate measurements. Whether you build furniture, work on house improvement projects, or require a good surface for general work, the right level guarantees efficiency and comfort. Be sure to use the digital tape measure with laser level or electronic level for assurance.
